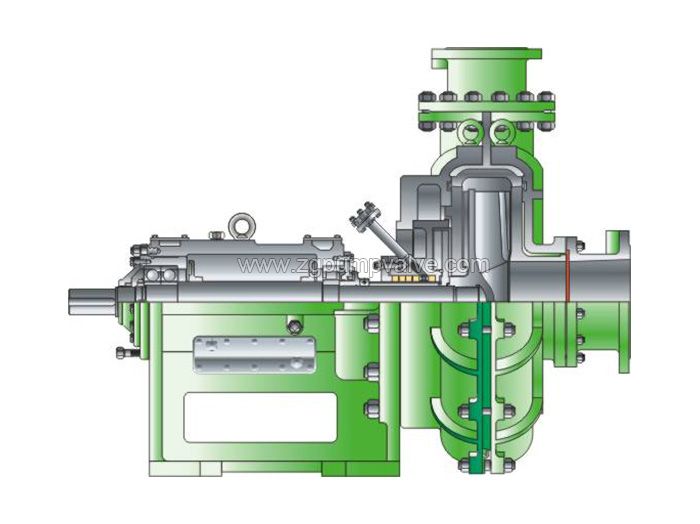

Desulfurization slurry circulation pump
ZDT desulfurization pump is a specially developed product for desulfurization and denitration process of power plant. It is suitable to be used as limestone slurry pump, filtrate pump,gypsum slurry discharge pump, drainage pump... The hydraulic models of ZDT desulfurization pump is optimized designed by CFD, and its passage is designed under the theory of abrasion of slurry pump.The wetted parts material for ZDT desulfurization pump is an anti-abrasive and anti-corrosive material which was developed by Zigong Pump itself.There are various materials available for our desulfurization slurry circulation pump, including stainless steel SS304, SS316, SS316L, duplex stainless steel, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
■Flow rate: Q=10～1920 （m³/h）
■Total head: H=15～75 (m)
■S.g.: γ ≤1.5
■Pump diameter: 25～300mm
■Pump passage is designed under the theory of abrasion of slurry pump, which has an optimized structure and high efficiency.
■Horizontal bracket structure with big loading capacity.
■Achievable of multi-point weak current monitoring.
■Transmission: Direct coupled,V-belt drive, variable frequency drive,hydraulic coupling.
■Single casing structure enables the easy disassembly.
■Various anti-abrasion materials for different applications.
■Single stage and cantilever type anti-abrasion pump.
■Single casing structure with back pull design.
■Different sealing types to meet the requirements of different applications.
■The standard pump discharge is vertical,and up horizontal and bottom horizontal discharge are also available.

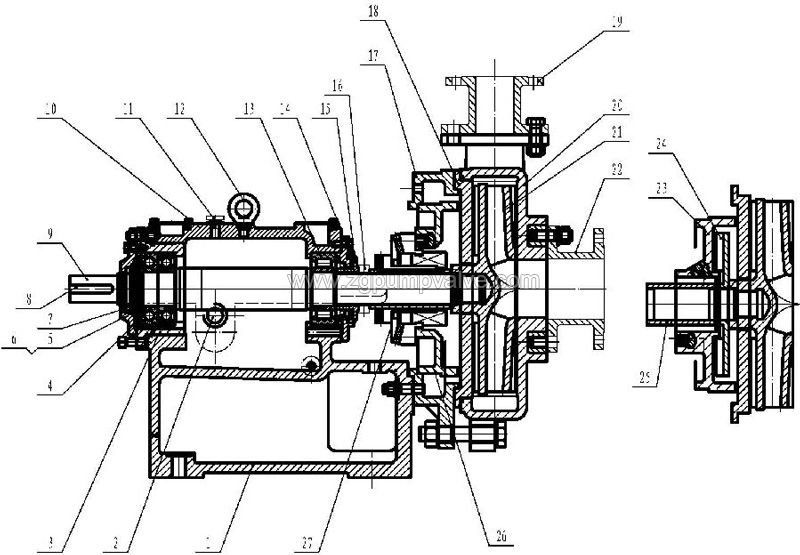

Structure drawing is as below
2. Oil leveler
4. Back bearing gland
5. Round nut
6. Lock washer
7. Oil seal
10. Bracket cover
11. Air hole cover
12. Lifting screw
14. Front bearing gland
15. Dust proof cover
16. Dismantling ring
18. Guard plate
19. Discharge pipe
20. Pump casing
22. Suction pipe
23. Vice impeller house
24. Vice impeller
25. Shaft sleeve
26. Mechanical seal room
27. Mechanical seal
■Material of flow passage components based on pumped medium: Cr26 wear-resistant material, or Cr30, CD4MCu wear-resistant and anti-corrosion material, and other general wear-resistant material.
■Material of pump shaft: 40Cr.
■Material of bracket, bearing box etc. parts: gray cast iron 200.
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Mechanical seal||Zigong brand||Burgmann, Sihuan Riji, Chengdu Yitong|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
|Couplings||Pin type||Flexible diaphragm coupling|
■Desulfurization and denitration process of power plant. It is suitable to be used as limestone slurry pump, filtrate pump, gypsum slurry discharge pump, drainage pump...
■Ammonium phosphate chemical industry
■Other similar applications.
