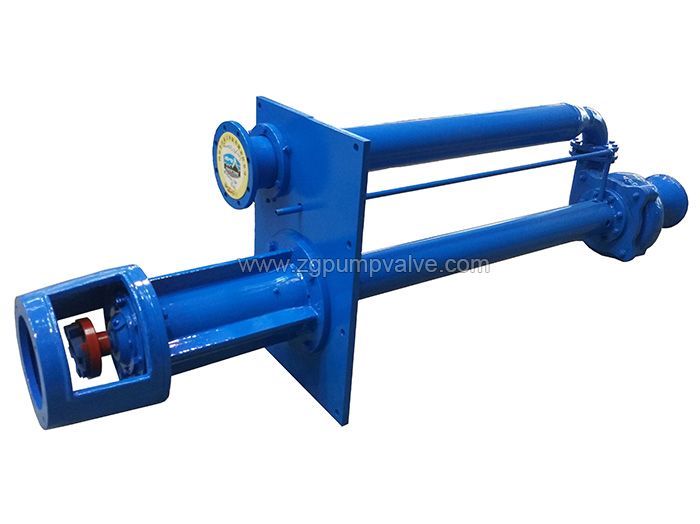

Wear resistant submerged slurry pump
The ZLX vertical wear resistant submerged pump features a cantilevered and double-bracket construction for improved reliability and stability during operation. A suction pipe of less than 2 meters can be added to the pump inlet depending on the level requirements. More than 10 materials are available for different applications. It is suitable for pumping fluids containing suspended particles and is widely used in power plants, chemical, petrochemical, mining, cement and other industries.There are various materials available for our vertical wear resistant submerged pump, including stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...

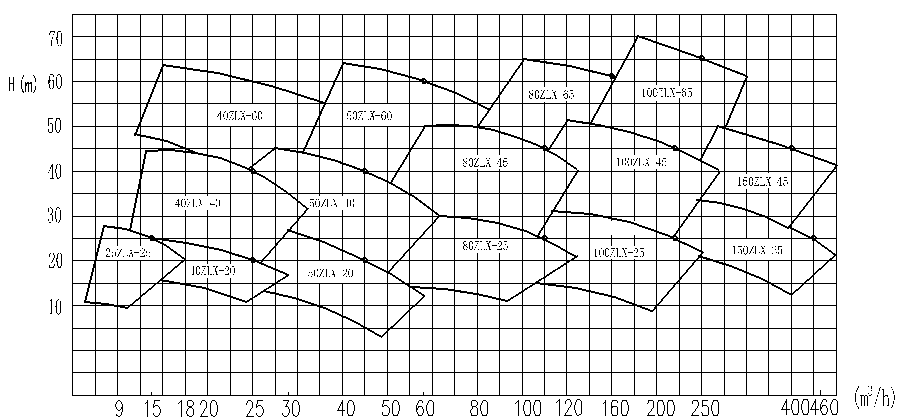

■Flow rate: Q=9～460 （m³/h）
■Total head: H=10～65 (m)
■S.g.: γ ≤1.5
■Pump diameter: 50～200mm
■Conforms to JB/T8096-1998 standard.
■Double bracket structure design increases the reliability and stability.
■Optimized hydraulic models with better ability to fit the applications.
■Several standard installation depths, a suction pipe can be added to the pump inlet if the installation depth is above 1.5 m.
■Low pump speed and linear speed design to reduce the abrasion of pump.
■Various anti-abrasion materials for different applications.
■Single casing structure,casing is connected to the connecting pipe,and connecting pipe is connected to the bearing housing,and bearing housing is connected to the baseplate.
■Cylinder type bearing housing with rolling bearings.
■Restrictor seal without external flushing water.
■Transmission: Direct coupled,variable frequency drive.

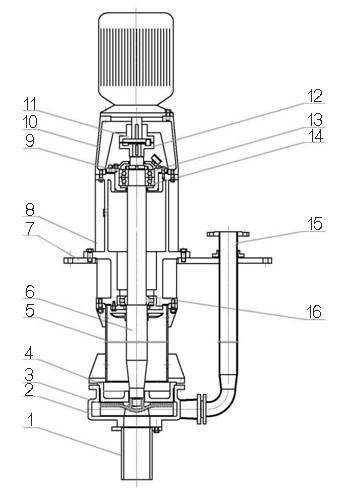

Structure drawing is as below
2. Pump casing
5. Take over
7. Base plate
8. Bearing seat
9. Bearing box
10. Motor seat
11. Electric connector
15. Outlet pipe
■Material of flow passage components based on pumped medium: Cr26 wear-resistant material, or Cr30, CD4MCu wear-resistant and anti-corrosion material, and other general wear-resistant material, such as gray cast iron 200, Z-1#, C-15, ZG40Mn2.
■Material of outlet pipe, base etc. parts: Q235-A.
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Mechanical seal||Zigong brand||Burgmann, Sihuan Riji, Chengdu Yitong|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
|Couplings||Pin type||Flexible diaphragm coupling|
■Sewage conveying of power plant, mining, cement, steel, non-ferrous metal.
■Fluid conveying of aluminum oxide producing process.
■Slurry conveying of sedimentation basin of other industries.
