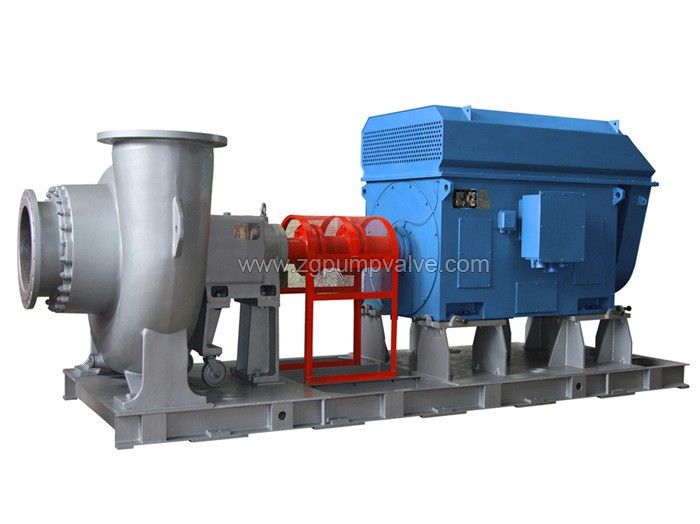

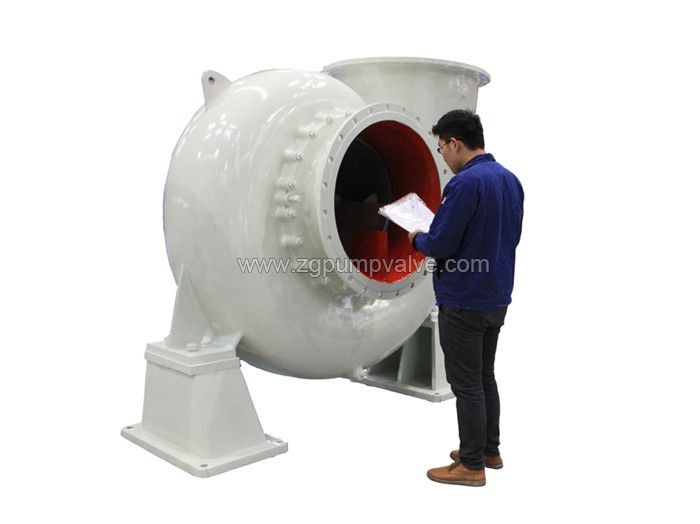

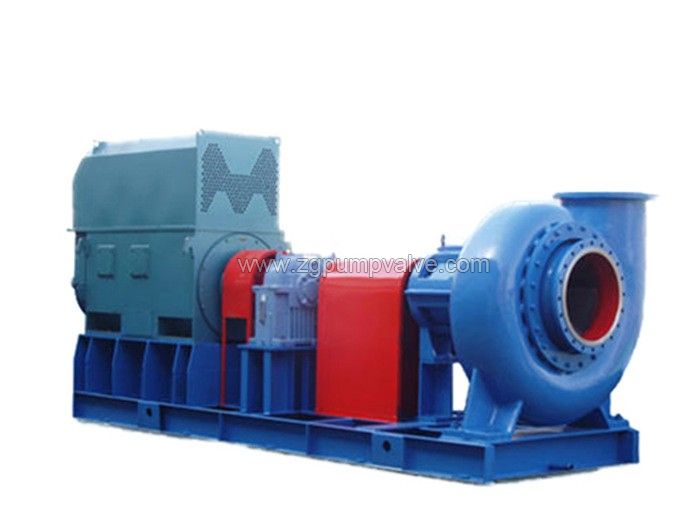

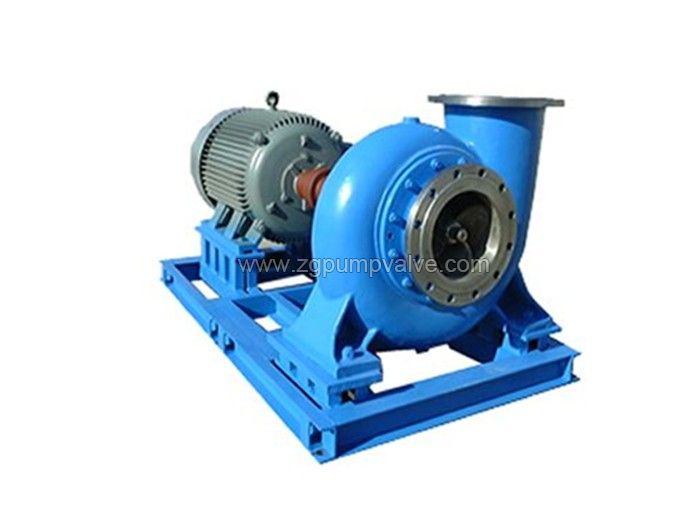

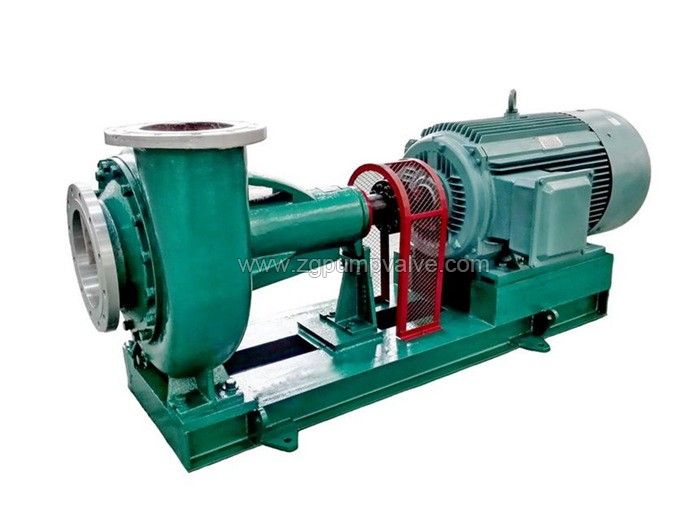

FGD flue gas desulfurization pump
Aiming at the characteristics of flue gas desulfurization project of thermal power plant, a new generation of desulfurization pump products carefully developed to meet the needs of pumps for limestone (lime)/gypsum wet flue gas desulfurization process of coal-fired power plants. The hydraulic model is optimized by CFD, and the slurry pump design is applied to the flow path design. The over-current components adopt self-developed wear-resistant and corrosion-resistant alloy cast iron materials, which embodies high efficiency, low energy consumption, low operating cost and high reliability. Features. At present, the products with the largest diameter up to Φ900mm have been developed. The series products are widely used in flue gas desulfurization and denitrification projects in electric power and environmental protection industries.There are various materials available for our FGD pump, cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
■Flow: Q=700～14000 (m3/h)
■ Lift: H=15~63 (m)
■ Specific gravity: γ ≤ 1.5
■Designed for the flue gas desulfurization project of thermal power plants to meet the flue gas desulfurization process of 1000MW and below
■Hydraulic model is optimized by CFD and has excellent anti-cavitation performance
■Mechanical sealing device specially designed for flue gas desulfurization process, with unique reliability and applicability
■The pump rotor component can adjust the position of the impeller in the pump cavity through the rear bearing box, providing a convenient means to restore the pump performance after mild wear.
■Axial adjustment structure design, can maintain the gap between the impeller and the front cover by adjustment, so as to operate with high efficiency
■The wear-resistant and corrosion-resistant two-phase stainless white iron specially developed for the FGD process, which has the advantages of duplex stainless steel and alloy white-mouth wear-resistant cast iron.
■The pump is made of all metal pump structure, without rubber or other polymer materials.
■The pump body is made of 2605N or 2205 duplex stainless steel. It has good resistance to chloride and sulfate ions and is the material of choice for metal materials for desulfurization pumps.
■The pump is front and rear open structure, no need to disassemble the pump inlet and outlet pipeline when disassembling the impeller, mechanical seal and other components
■Mechanical seal is single-end cartridge type seal, user can choose internal flush type and external flush type
■The bearing components adopt suspension and rear pull structure, and the pump drive adopts direct transmission or variable speed transmission.

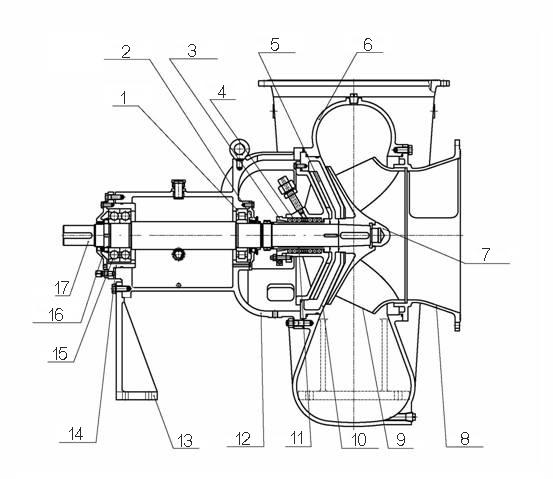

1. Bearing cover
2. Filler cover
6. Pump casing
7. Impeller nut
8. Front pump cover
10. Back pump casing
11. Shaft sleeve
12. Bearing box
14. Bearing box
16. Bearing gland
■Material of flow passage components based on pumped medium: 2605N or 2205 duplex stainless steel, and Cr30 wear-resistant and anti-corrosion material especially for FGD device absorption tower.
■Material of suspension, bearing box etc. parts: gray cast iron 200.
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Mechanical seal||Zigong brand||Burgmann, Sihuan Riji, Chengdu Yitong|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
|Couplings||Pin type||Flexible diaphragm coupling|
■Mainly used as circulation pump of gypsum slurry of absorbing tower of FGD process.
■Slurry pump of ammonium phosphate
■Other applications of big flow rate and low head.
