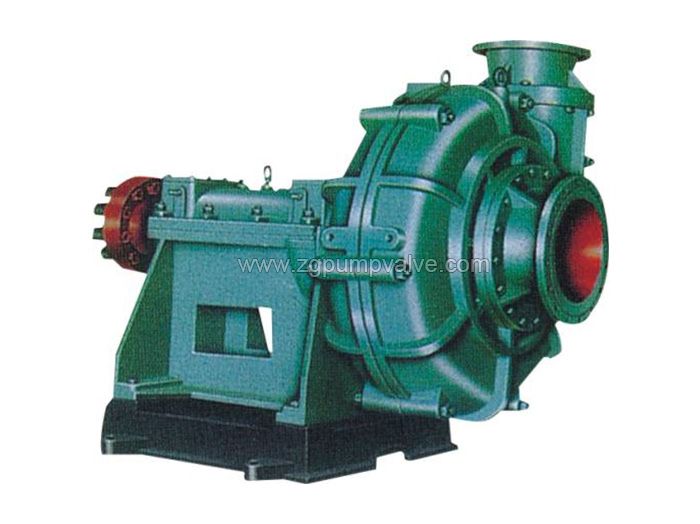

Heavy duty slurry pump
ZD (ZDT) heavy duty slurry pumps are designed for the power, metallurgical, coal and construction materials industries to pump neutral or alkaline slurries containing solids. Optimized design, high efficiency, simple structure, easy maintenance, low operating costs. The ZD (ZDT) series is suitable for both atmospheric and low fluid density applications and can only be used as a stand-alone pump set.There are various materials available for our heavy duty slurry pump, including stainless steel SS304, SS316, SS316L, duplex stainless steel, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
■Flow rate: Q=10～1000 （m³/h）
■Total head: H=20～60 (m)
■S.g.: γ ≤1.23
■Pump diameter: 25～300mm
■Pump for conveying neutral or alkali slurries with solids.
■Bracket structure with single casing, easy for disassembly.
■Horizontal structure with a big loading capacity.
■Optimized hydraulic models of wide applicability.
■Heavy duty shaft with better performance in strength.
■Low pump speed and linear speed design to reduce the abrasion of pump.
■Various anti-abrasion materials for different applications.
■Single casing design. The casing and guard plate are working as anti-abrasive parts without outer frame.
■GB standard flanges, inlet pressure 1.6 MPa,outlet pressure 2.5 MPa;
■Shaft sealing: Dynamic seal, packing seal and mechanical seal.
■Transmission: Direct coupled, V-belt drive, variable frequency drive, hydraulic coupling.

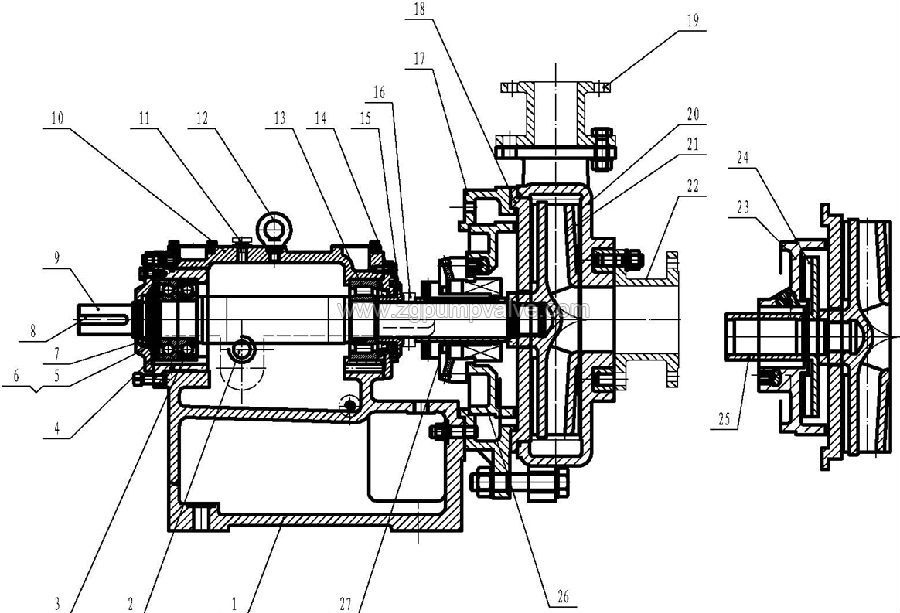

Structure drawing is as below
2. Oil leveler
4. Back bearing gland
5. Round nut
6. Lock washer
7. Oil seal
10. Bracket cover
11. Air hole cover
12. Lifting screw
14. Front bearing gland
15. Dust proof cover
16. Dismantling ring
18. Guard plate
19. Discharge pipe
20. Pump casing
22. Suction pipe
23. Vice impeller house
24. Vice impeller
25. Shaft sleeve
26. Mechanical seal room
27. Mechanical seal
■Material of flow passage components based on pumped medium: Cr26 wear-resistant material, or Cr30, CD4MCu wear-resistant and anti-corrosion material, and other general wear-resistant material.
■Material of pump casing, pump cover, bracket etc. supporting parts: gray cast iron.
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Mechanical seal||Zigong brand||Burgmann, Sihuan Riji, Chengdu Yitong|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
|Couplings||Pin type||Flexible diaphragm coupling|
■Industries of electricity power, metallurgy, coal mine and construction materials, to pump neutral or alkali slurries with solids.
■Desulfurization process in thermal power plant.
■Can be only used as single operated pump set.
