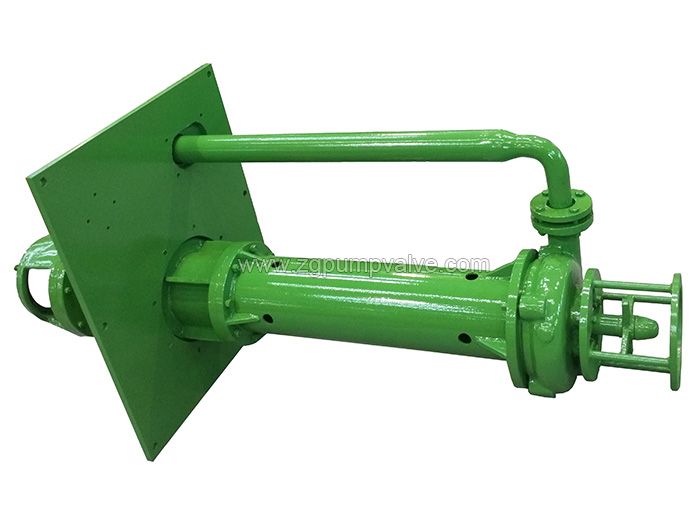

Vertical submerged slurry pump
ZLJ vertical submerged slurry pump is a China patent product of Zigong Pump & Valve, which adopts a stirring impeller at the pump inlet to solve the problem of quick sedimentation of medium. ZLJ series is cantilever and double-bracket structure, which increases the reliability and stability during operation. More than 10 kinds of materials are available for different applications. It is suitable to pump fluids with suspended particles, and is widely used in industries of power plant, chemical, petrochemical, mines and cement..There are various materials available for our vertical submerged slurry pump, including cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
■Flow rate: Q=9～460 （m³/h）
■Total head: H=10～65 (m)
■S.g.: γ ≤1.5
■Pump diameter: 50～200mm
■An updated vertical submerged slurry pump conforms to JB/T8096-1998.
■Adopts a stirring impeller at the pump inlet to solve the problem of quick sedimentation of medium.
■Cantilever and double-bracket structure, increases the reliability and stability during operation.
■Slow speed and low linear speed design for heavy slurries to reduce the abrasion.
■Different anti-abrasive materials for various applications.
■Especially suitable for pumping the fluids with quick sedimentation solids.
■Single casing structure, casing is connected to the connecting pipe, and connecting pipe is connected to the bearing housing, and bearing housing is connected to the baseplate.
■Cylinder type bearing housing with rolling bearings.
■Restrictor seal without external flushing water.
■Transmission: Direct coupled, variable frequency drive.

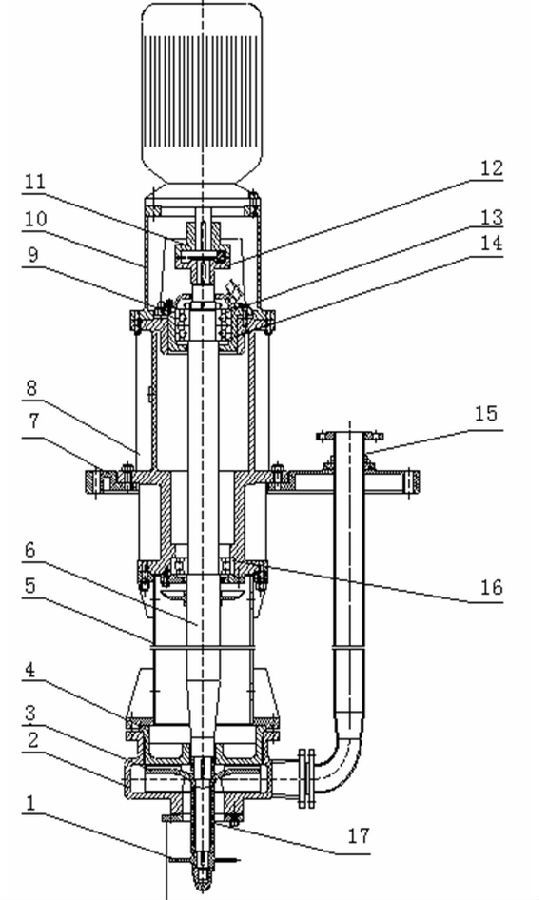

Structure drawing is as below
1. Stirring wheel
2. Pump casing
4. Back plate
5. Connecting pipe
7. Base plate
8. Bearing base
9. Bearing box
10. Motor base
11. Motor coupling
12. Pump coupling
15. Discharge pipe
17. Impeller bushing
■Material of flow passage components based on pumped medium: Cr26 wear-resistant material, or Cr30, CD4MCu wear-resistant and anti-corrosion material, and other general wear-resistant material, such as gray cast iron 200, Z-1#, C-15, ZG40Mn2.
■Material of outlet pipe, base etc. parts: Q235-A.
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Mechanical seal||Zigong brand||Burgmann, Sihuan Riji, Chengdu Yitong|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
|Couplings||Pin type||Flexible diaphragm coupling|
■Sewage conveying of power plant, mining, cement, steel, non-ferrous metal.
■Fluid conveying of aluminum oxide producing process.
■Slurry conveying of sedimentation basin of other industries.
