Gate valve

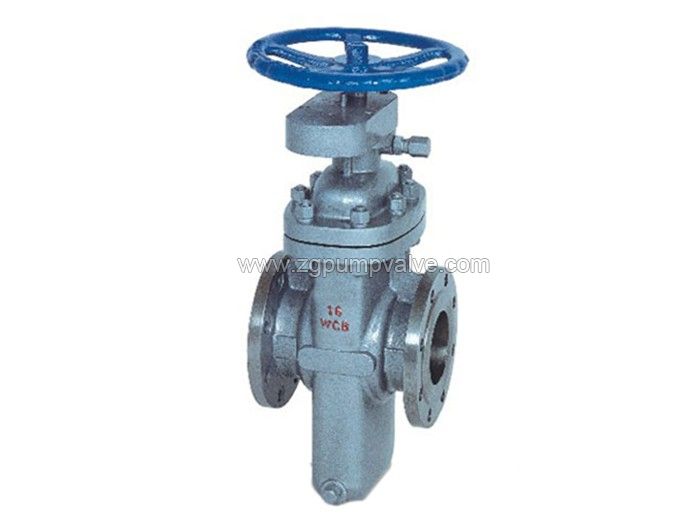

Flat gate valve

Product name: Flat gate valve

DN： 1”(25)~ 42”(1050)

CLASS(PN)： 150LB(16)~2500LB(420)

Available materials: cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...

Inquire Now Next Product

Parameters
Features
Structure
MOC
Configuration
Application
Performance

None

Products & Service

Pump Products
Valve Products
Service

Company video

News

High Efficiency Chemical Centrifugal Pumps
Application-Coal fired power generation -Desulfurization pump-Eco friendly
Widely Application of Three-column Polymer Injection Pumps for Enhanced Oil Recovery in Petroleum Industry
Premium Reciprocating Plunger Pump
What Is An Axial Flow Polypropylene Loop Reactor Pump?
What Is A Single Screw Pump? What Is A Progressing Cavity Pump?
High Efficiency Open Impeller Pulp Pumps For The Pulp And Paper Industry
What Is An Axially Split Casing Multistage Pump?
Record An Installation Process Of Axially Split Casing Multistage Pumps
More About High Temperature Molten Salt Pumps

High Efficiency Chemical Centrifugal Pumps
Application-Coal fired power generation -Desulfurization pump-Eco friendly
Widely Application of Three-column Polymer Injection Pumps for Enhanced Oil Recovery in Petroleum Industry
Premium Reciprocating Plunger Pump
What Is An Axial Flow Polypropylene Loop Reactor Pump?
What Is A Single Screw Pump? What Is A Progressing Cavity Pump?
High Efficiency Open Impeller Pulp Pumps For The Pulp And Paper Industry
What Is An Axially Split Casing Multistage Pump?
Record An Installation Process Of Axially Split Casing Multistage Pumps
More About High Temperature Molten Salt Pumps

+86 28 8218 1182
+86 137 3800 6567
+86 28 8218 1182
sales@zgpumpvalve.com
zigongpump

Body structure:	Bolted bonnet
Valve seat:	Floating double seat, hard or soft seal
Disc:	Normal type, adjustable type, with guide hole, expansion type
Flow pass:	Full bore / reduced diameter (optional)
Valve stem:	Anti-blowout, can be lengthened (optional)
Stem and bonnet:	Rising pole bracket structure,anti-blowout, can be lengthened (optional)
Operation mode:	Manual / electric / pneumatic / pneumatic-hydraulic linkage / electro-hydraulic linkage / hydraulic (optional)
Seal:	Metal seal
Grease injection valve:	Optional
Locking device:	Optional
Leak rating:	Metal seal: ISO 5208 C or above, ANSI VI

Material of main parts
Valve body	Carbon steel / stainless steel / alloy steel
Valve flap	Carbon steel / stainless steel / alloy steel spray welding hard alloy
Valve seat ring	Carbon steel / stainless steel / alloy steel forgings
Valve stem	Stainless steel / alloy steel / INCONEL, etc.
Packing	PTFE, graphite, etc.
Bolts and nuts	A193/A194, A320/GB/HG, etc.

Pressure temperature class:	ASME B16.34
Design:	API 6D, GB/T 19672, ASME B16.34, GB, GOST, DIN, BS,etc.
Test:	API 6D / API 598 / GB/T 13927 and other relevantNational standards.
Structure length:	API 6D, ANSI B16.10, GB 12221, GOST, DIN, BS/ manufacture standard / user requirements.
Connection end:	BW (ASME B16.25, ASME B31.8 / GB / T12224 and other national standards), RF (ASME B16.5, ASME B16.47, GB / JB / HG / GOST, DIN, etc.), RTJ (ASME B16. 5, ASME B16.47, GB / JB / HG / GOST, DIN, etc.), BW + PUP (the length of the transition tube is customized)
Fire protection requirements:	API 6FA/BS 6755
Anti-static electricity:	API 608/BS 5351
Valve anti-sulfur:	NACE MR. 0175
