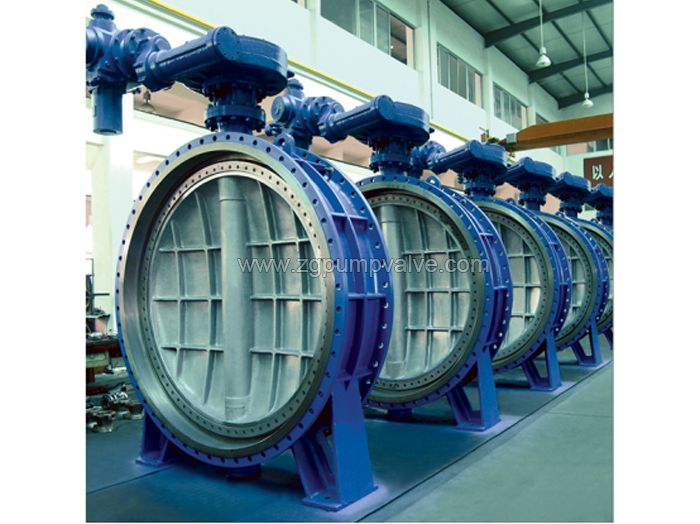

Butterfly valve
Butterfly valve
Product name: Butterfly valve
DN: 2”(50)~ 80”(2000)
CLASS(PN): 150LB(16)~300LB(50)
Available materials: cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
-
Parameters
-
Features
-
Structure
-
MOC
-
Configuration
-
Application
-
Performance
Body structure: | Integral, inner surface can be lined with rubber |
Valve seat: | Single seat, hard seal / soft seal |
Butterfly plate: | Half turn |
Sealed form | Triple Eccentric / centric construction / double eccentric |
Flow pass: | Conventional |
Operation mode: | Manual / electric / pneumatic / pneumatic-hydraulic linkage / electro-hydraulic linkage / hydraulic (optional) |
Seal: | Metal seal / soft seal |
Leak rating: | Metal seal: ISO 5208 C or above, ANSI VI |
Material of main parts | |
Valve body | Carbon steel / stainless steel / alloy steel / casting, group welding |
Valve flap | Carbon steel / stainless steel / alloy steel spray welding hard alloy |
Valve seat ring | Carbon steel / stainless steel / alloy steel forgings |
Bolts and nuts | A193/A194, A320/GB/HG, etc. |
Pressure temperature class: | ASME B16.34 |
Design: | API 609, GB/T 12238, ASME B16.34, GB, GOST, DIN, BS,etc. |
Test: | API 598 / GB/T 13927 and other relevant national standards. |
Structure length: | GB 12221,ANSI B16.10 / manufacturer standard / user requirements. |
Connection end: | Flange end, welding end, wafer |
Fire protection requirements: | API 607/API 6FA/BS 6755 |
Anti-static electricity: | API 608/BS 5351 |
Valve anti-sulfur: | NACE MR. 0175 |
Low construction cost, light weight and small flow resistance, can be used for adjustment. Good flow adjusting ability, high precision of flow characteristic curve and good dynamic adjustment stability.
