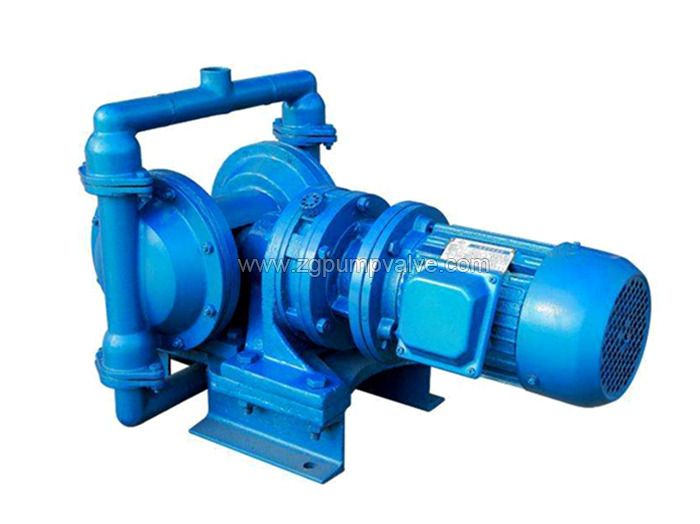

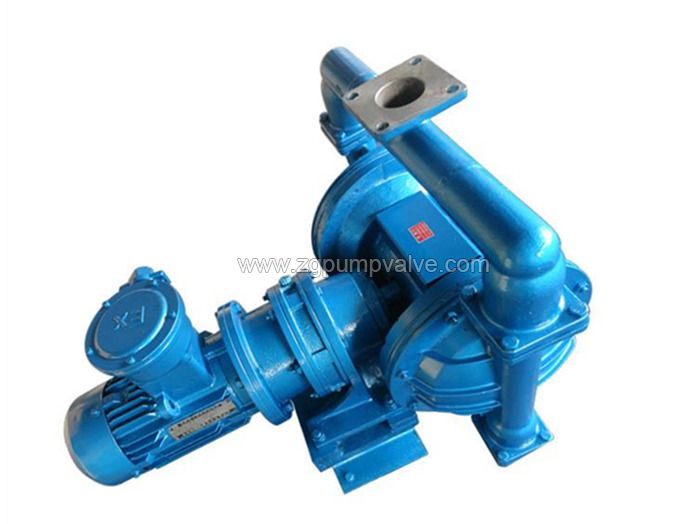

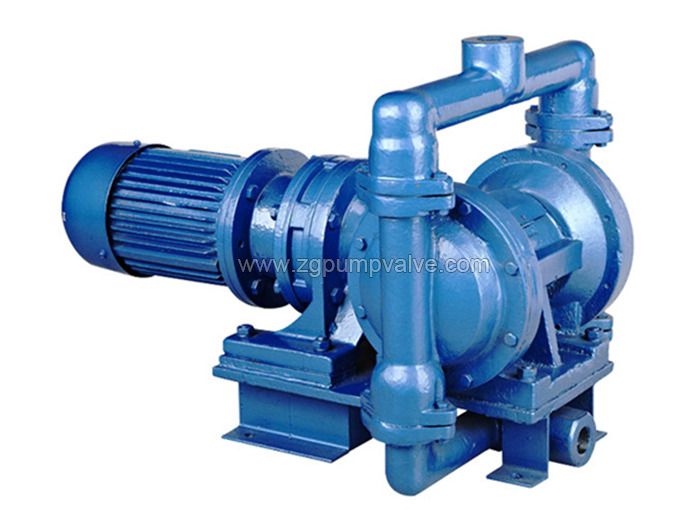

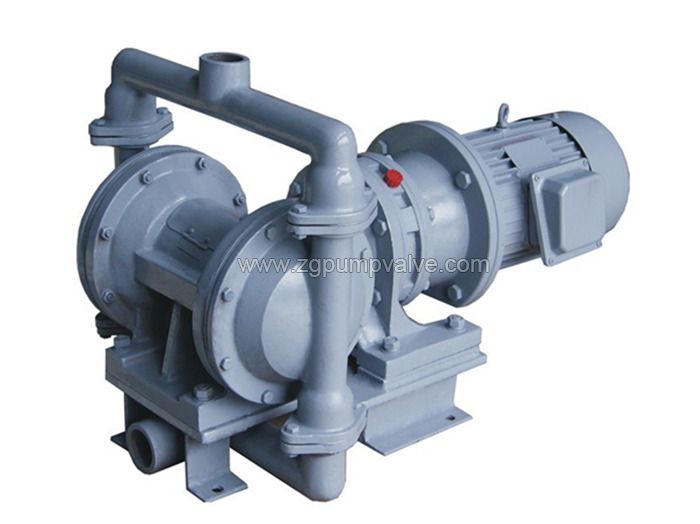

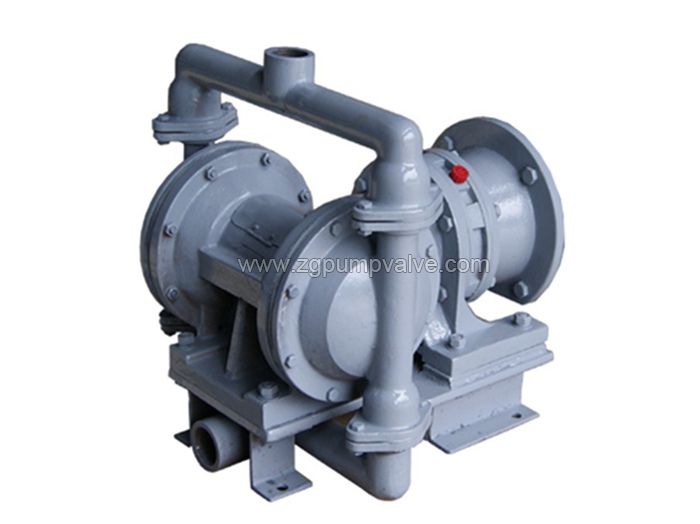

Electric diaphragm pump
The electric diaphragm pump produced by our company is a new type of pump. Due to the breakthrough in diaphragm material, many countries use diaphragm pumps to replace some centrifugal pumps and screw pumps for petrochemical, ceramic, metallurgical and other industries. .
■Flow rate: Q=0.5～20m3/h
■Total head: H=0～40m
■S.g.: γ ≤1.15
■Suction head: 5～7 m
■No need to irrigate water. Ultra high suction.
■Good performance, particles and mud with a diameter of less than 10 mm can pass.
■The diaphragm will be separated by the conveying medium and the transmission mechanical parts, the medium will never leak out; and the pump itself has no shaft seal, the service life is greatly extended; according to different media, the diaphragm can be divided into neoprene, fluororubber, nitrile Rubber, polytetrafluorohexene, Teflon (F46), etc.
■The over-flow part of the pump body can be divided into cast iron, stainless steel, fluorine-lined and aluminum alloy according to different user requirements. The motor can be divided into ordinary motor, explosion-proof motor, geared motor and electromagnetic speed-regulating motor.
■Plastic, aluminum alloy, cast iron, stainless steel, SS304, SS316, SS316L,CD4MCu
■Diaphragm pump diaphragm according to different liquid media using nitrile rubber, neoprene rubber, fluoroelastomer, polytetrafluoroethylene, polytetrafluoroethylene and other special occasions, used to pump a variety of media to meet the needs
■A variety of highly toxic, flammable, volatile liquids
■Various strong acids, strong bases, strong corrosive liquids
■Can transport higher temperature medium 150 degrees Celsius
■It is used as a press-feed device for various press filters
■Hot water recovery and recycling
■Tanker, oil depot, oil handling
■Pump pickles, jam, mashed potatoes, chocolate, etc
■Pump paint, gum, pigment adhesive
■All kinds of China glaze slurry, cement grouting, mortar, mud
■All kinds of rubber pulp, latex, organic solvents, fillers
■Pump the tanker barge to clear the warehouse and absorb the waste water and residual oil
■Hops and baking powder pulp, syrup, molasses
