Diaphragm Pump

  • Pneumatic diaphragm pump
  • Pneumatic diaphragm pump
  • Pneumatic diaphragm pump
  • Pneumatic diaphragm pump
  • Pneumatic diaphragm pump

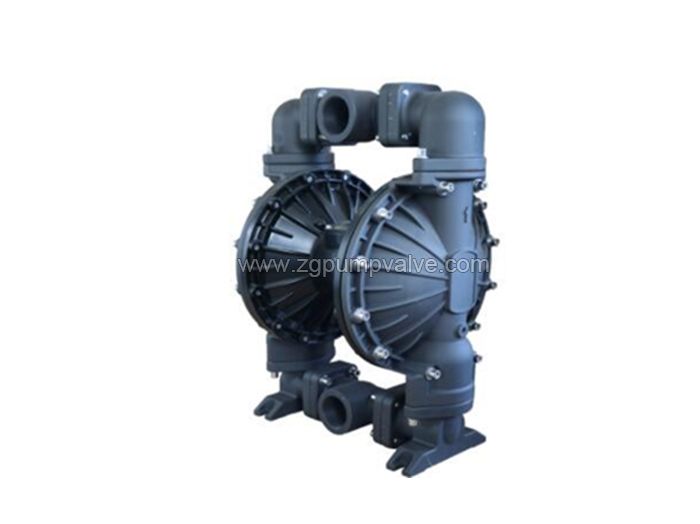

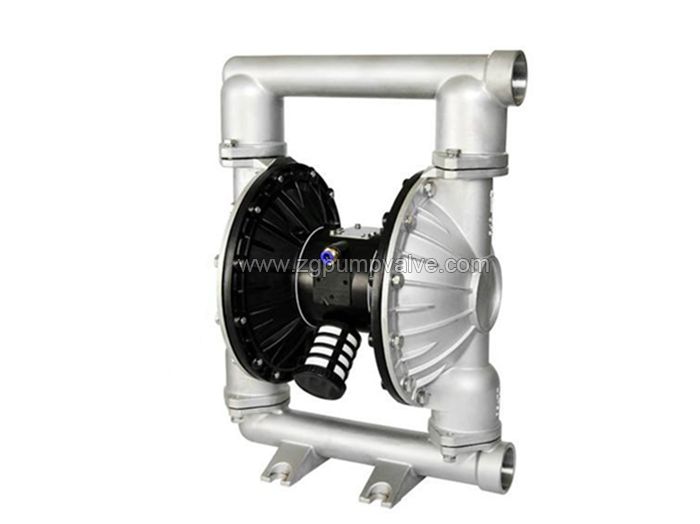

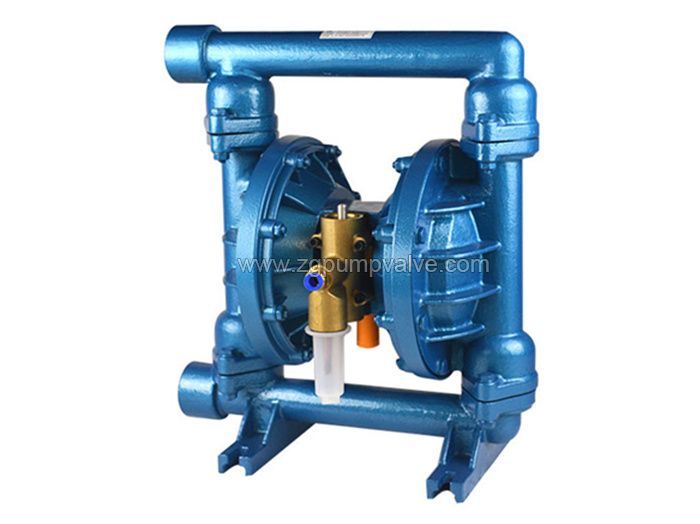

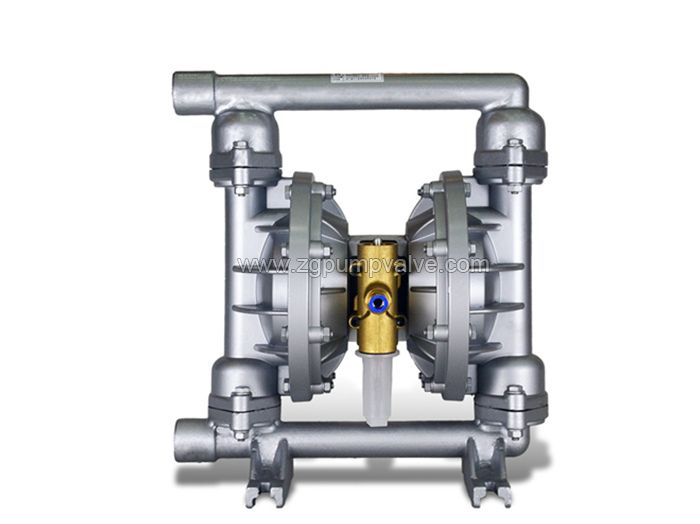

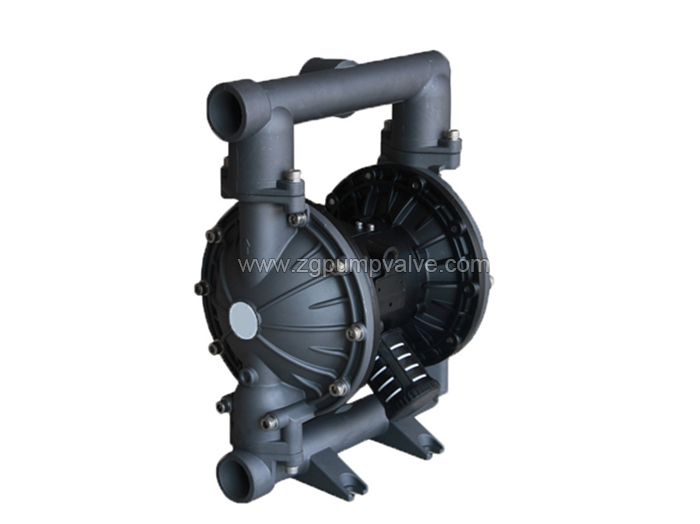

Pneumatic diaphragm pump

QBY pneumatic diaphragm pump is the second generation of pneumatic diaphragm pump developed by our company. It uses compressed air as the power source. It can absorb all kinds of corrosive liquids, liquid with particles, volatile and flammable liquid. . The external copper valve developed by our company has super high efficiency.

Inquire Now
  • Parameters

  • Features

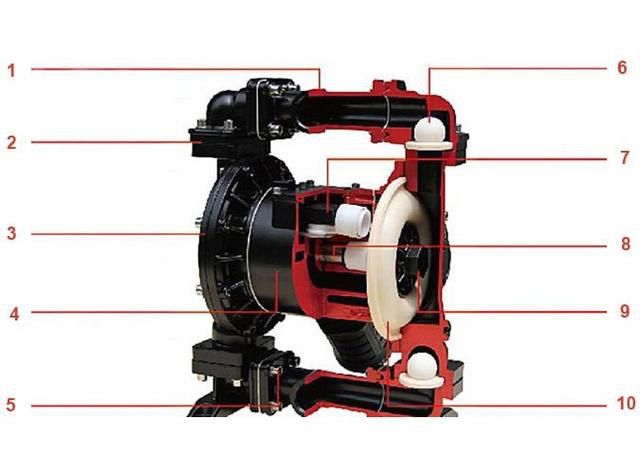

  • Structure

  • MOC

  • Configuration

  • Application

  • Performance

■Flow rate: Q=0.8~30m3/h

■Total head: H=0~50m

■Speed: n=1450rpm

■Inlet/outlet diameter: 10 - 100mm

■Max particle diameter: 1 - 10mm

■Suction head: 5~7 m
