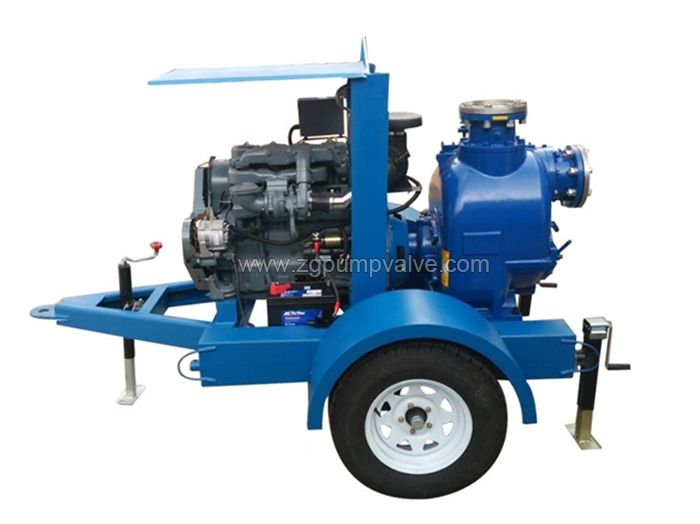

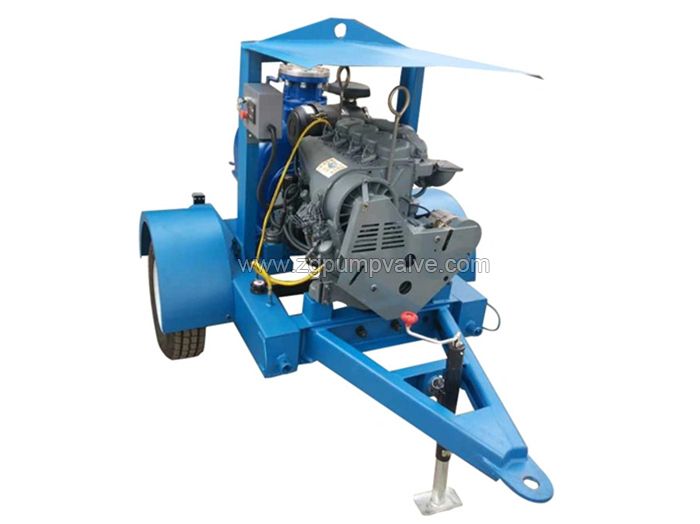

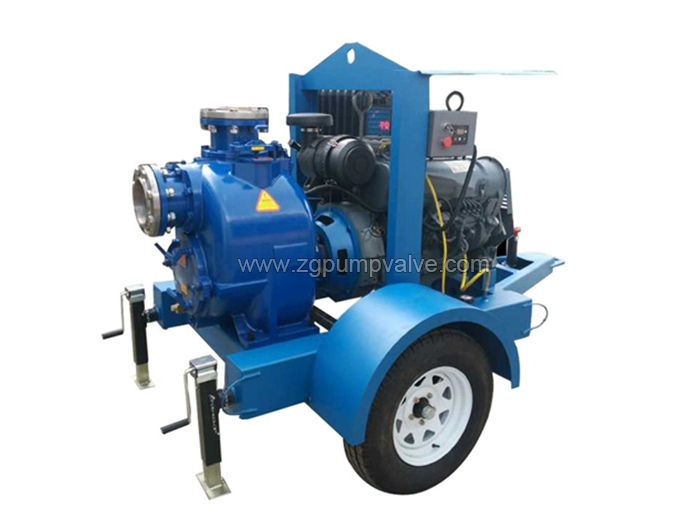

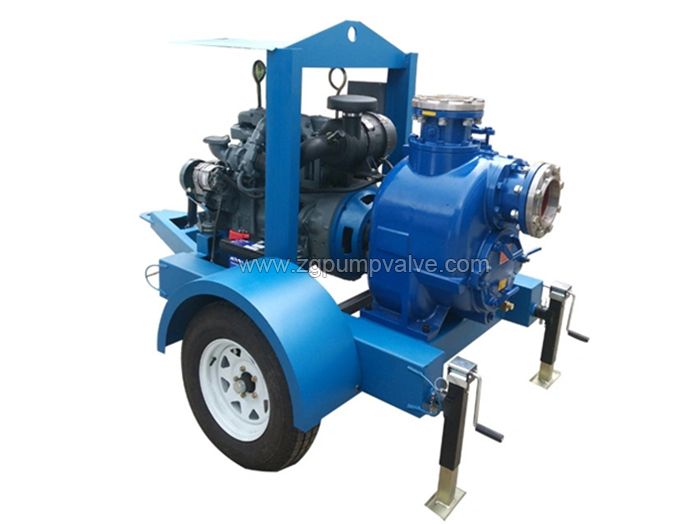

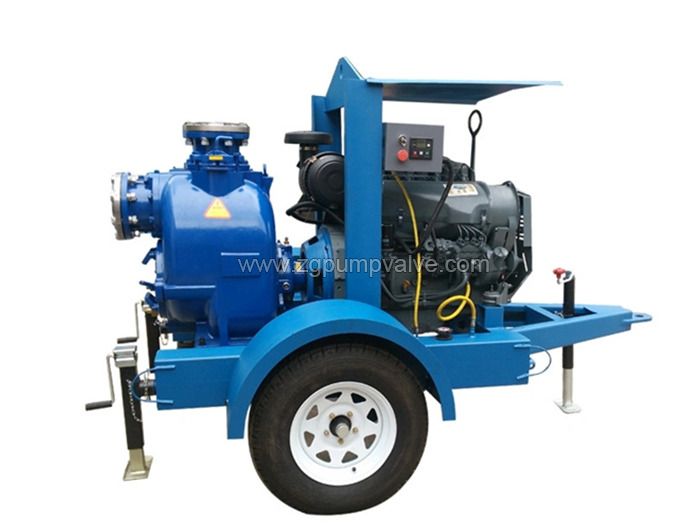

Trailer mounted diesel self-priming pump

■Flow rate: Q=8～800m3/h

■Total head: H=10～80m

■Speed: n=1450rpm/2950rpm

■S.g.: γ ≤1.15

■Temperature: T=--20～160℃

■Pump diameter: 40～350mm

■Simple structure, easy to use and maintain, with a high efficiency, small and light
■Transmission mode: direct and variable-speed. The actuators: Electric Motor and diesel engine. In purchase order, specify actuator type (power, rotations), to confirm spindle coupler or belt specification.
■Pump direction: from pump inlet side, impeller normally is counterclockwise, (650CHW -5, -7, and 10 pump clockwise).

■For fresh water or similar fluids
■Widely used in agricultural, industrial, municipal water supply networks
■Sewage and deposit of water purifying system
■Paper-making, textile, foods, chemicals, electric power
■Distribution, mining, sewage drain, leather, brewage
■Non-corrosive and highly-polluted sewage drain
