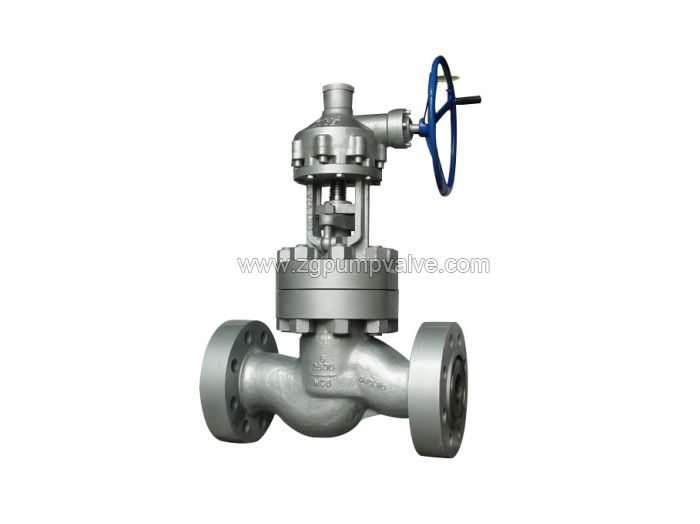

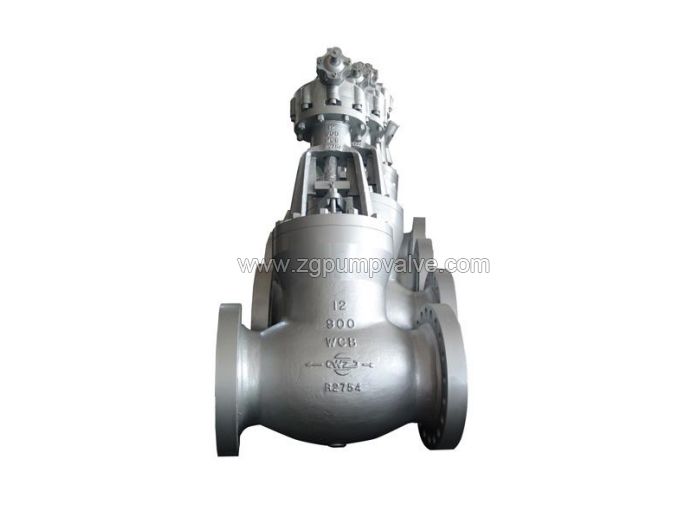

Globe valve
Globe valve
Product name: Globe valve
DN: 1/2”(15)~ 12”(300)
CLASS(PN): 150LB(16)~2500LB(420)
Available materials: cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
-
Parameters
-
Features
-
Structure
-
MOC
-
Configuration
-
Application
-
Performance
Body structure: | Bolted bonnet |
Valve seat: | Hard seal |
Disc: | Flat or plug |
Flow pass: | Conventional |
Stem and bonnet: | Rising pole bracket structure,anti-blowout,Lengthened (optional) |
Operation mode: | Manual / electric / pneumatic / pneumatic-hydraulic linkage / electro-hydraulic linkage / hydraulic (optional) |
Seal: | Metal seal |
Grease injection valve: | Optional |
Locking device: | Optional |
Leak rating: | Metal seal: ISO 5208 C or above, ANSI VI |
Material of main parts | |
Valve body | Carbon steel / stainless steel / alloy steel / casting, group welding |
Valve flap | Carbon steel / stainless steel / alloy steel spray welding hard alloy |
Valve seat ring | Carbon steel / stainless steel / alloy steel forgings |
Valve stem | Stainless steel / alloy steel / INCONEL, etc. |
Packing | PTFE, graphite, etc. |
Bolts and nuts | A193/A194, A320, etc. |
Pressure temperature class: | ASME B16.34 |
Design: | API 600, GB 12235 ASME B16.34, API 6D, GB, GOST, DIN, BS,etc. |
Test: | API 600/API 598/GB/T 13927ETC. |
Structure length: | API 600, GB 12221, ANSI B16.10/ manufacturer standard / user requirements. |
Connection end: | BW (ASME B16.25, ASME B31.8 / GB / T12224 and other national standards), RF (ASME B16.5, ASMEB16.47, GB / JB / HG / GOST, DIN, etc.), RTJ (ASMEB16. 5, ASME B16.47, GB / JB / HG / GOST, DIN, etc.), BW + PUP (the length of the transition tube is customized) |
Fire protection requirements: | API 6FA/BS 6755 |
Anti-static electricity: | API 608/BS 5351 |
Valve anti-sulfur: | NACE MR. 0175 |
The product is low in price, wide in scope of application, compact in structure, reliable in sealing, suitable for severe working conditions, and the plug valve can be used for adjustment.
