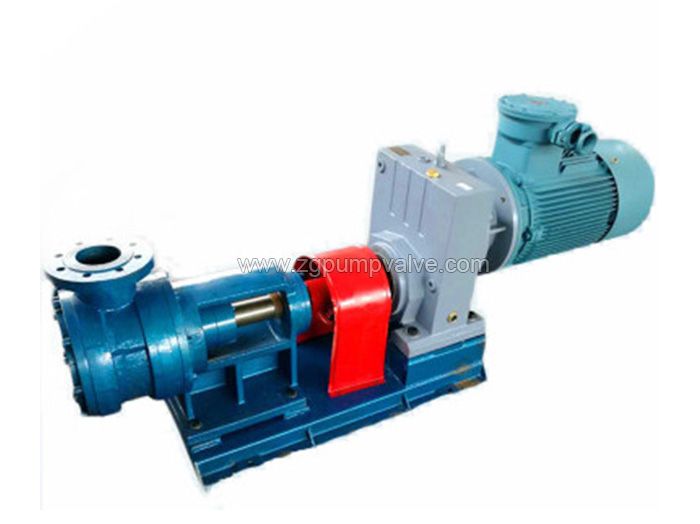

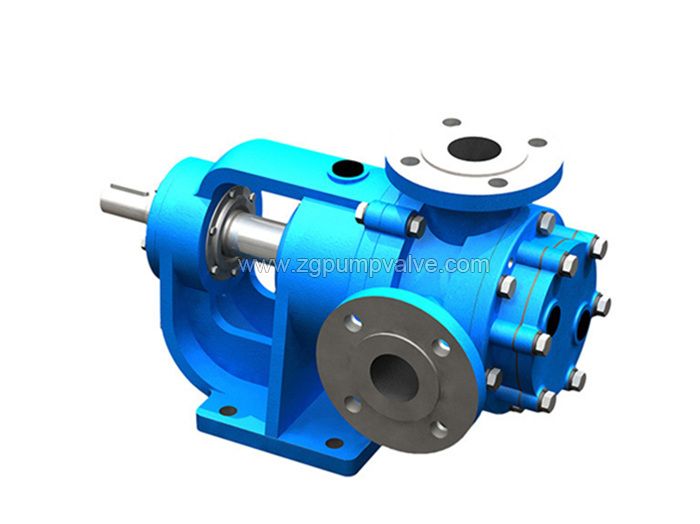

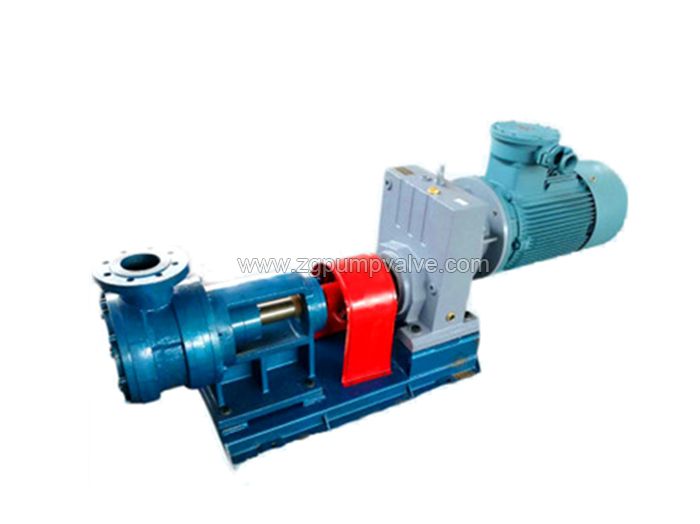

High viscosity rotor pump
NYP high viscosity internal meshing rotor pump is a new type of positive displacement pump developed according to the requirements of petroleum, chemical, paint, grease, medicine, dye, food and other industries. NYP high viscosity pump can choose different materials and its products. Structure, therefore widely used in different properties, medium transport of different viscosities.There are various materials available for our high viscosity rotor pump, including stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
■Flow rate: Q=0.1～336 （m³/h）
■Flow per 100 Rotation(L): 3～200
■Suggestion Rotation Speed(rpm): 200/400/500
■Max. Viscosity: 1～1000000 cp
■ The conveying liquid is stable, no pulsation, low vibration, low noise, and has strong self-priming performance.
■ It has the advantages of small size, light weight and long life.
■ It can be equipped with safety valve. When the pump or pipeline system is overpressured, the safety valve opens to form internal recirculation to ensure system safety.
■ According to the needs of viscosity, the gear gap can be adjusted without disassembling the pump to achieve the process requirements of the pump under different viscosity.
■ It is especially suitable for the transportation of high viscosity consistency media.

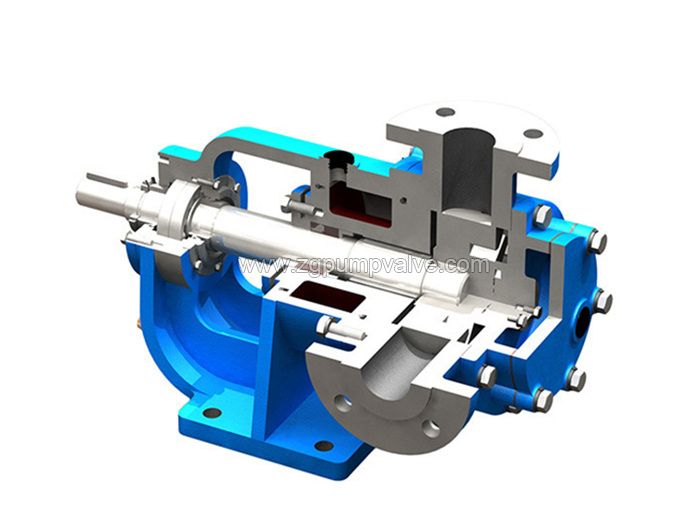

1. Front cover
2. Inside rotor
3. Pump casing
4. Outside rotor
5. Sliding bearing or rolling bearing
6. Packing seal or mechanical seal
7. Driving shaft
■ Pump casing: CI, CS, SS304, SS316, SS316L, 2205, 2507.
■ Rotor: SS304, SS316, SS316L, 2205, 2507, brass, CS, NR-SBR, NBR, H-NBR, FPM/FKM, EPDM, PUR.
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Gear box||Reputed China brand||SEW, Shandong Chenghua, Zhengzhou machinery instituteSiemens, Flender|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
■It is especially suitable for the transportation of high viscosity consistency media. It is widely used in the transportation of various fluids, especially for the treatment of fluids with large viscosity changes and a wide range.
■Plastic polyester industry: polyester resin, epoxy resin, hardener, isocyanate, moderator, polyol resin, surfactant, resin, polymer solvent, synthetic resin, binder, paste, plastic, polychlorin Triphenyl resin, acrylic resin, unsaturated polyester resin, alkyd resin, phenol resin, melamine resin, polyurethane, polystyrene, AS resin, ABS resin, epoxy resin, vinyl acetate, artificial leather, polymer Solvent.
■Silicone industry: silicone, silicone oil, glass glue base, 107 glue.
■Petrochemical industry: high viscosity fluids, asphalt, lubricants, greases, white latex, additives, petroleum, polymers, waxes, rosins, fibers, viscose, glues, detergents, resins, shampoos, silicone oils, chemical fluids
■Paint and coating industry: dyes, inks, solvent-based paints, magnetic paints, paints, solvents, rubber solutions, water-based paints, solvent paints, acrylic paints, water-based paints.
■Daily chemical industry: fatty alcohols, detergents, shaving creams, shampoos, soaps, creams, essences, shampoos.
