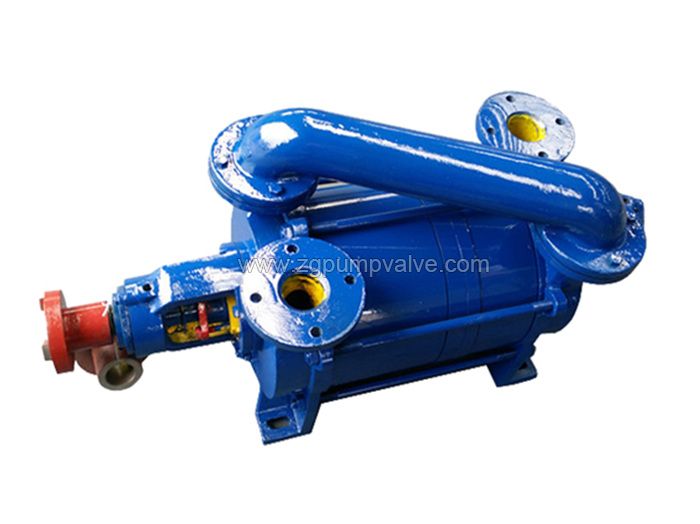

2SK water ring vacuum pump
2SK series two-stage water/liquid ring vacuum pump is used to extract air and other non-corrosive, insoluble, non-containing solid gases to obtain a higher vacuum in closed vessels.There are various materials available for our water ring vacuum pump, including cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
■Flow rate: Gas range:1.5～30m3/min
■Limiting vacuum degree: -725～-750mmHg
■Operating vacuum range: -0.03～0.08MPa
■ Compared with the single stage water ring vacuum pump, it has the characteristics of high vacuum degree and high pumping speed in the vacuum area.
■ With compact structure and easy to repair.
■ It has a wide range of applications. It can pump all kinds of gases containing water vapor, flammable, explosive, a small amount of dust and a small amount of liquid.
■ The main working medium is water, and the maintenance cost is low.
■ Able to work in harsh environment.

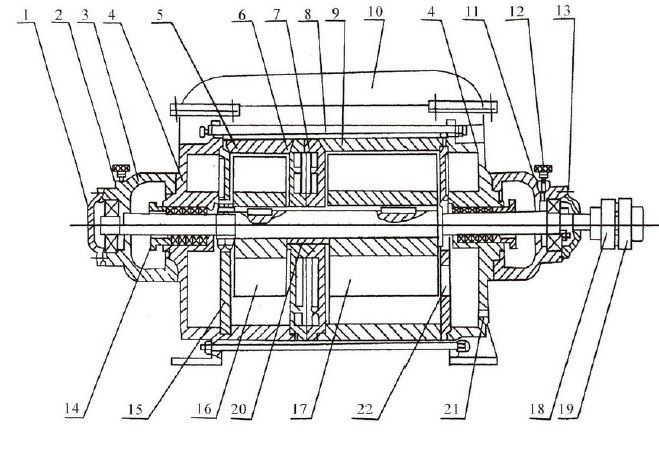

1. Back bearing cover
3. Bearing block
4. Front and back end cover
5. Short pump body
8. Draw-in bolt
9. Long pump body
10. Communicating tube
11. Adjustable pad
12. Oil cup
13. Front bearing cover
14. Packing cover
15. Back cover disc
16. Short impeller
17. Long impeller
18. Pump coupling
19. Motor coupling
20. Shaft sleeve
21. Flushing pot
22. Front cover disc
|Anti-corrosion alloy||Cast steel||Stainless steel|
|China standard||ASTM standard|
Carbon steel SS420 2205 SS304 SS316
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
|Couplings||Pin type||Flexible diaphragm coupling|
Widely used in food, weaving chemical industry, medicine, metallurgy industry and electronic field of vacuum evaporation, vacuum concentration, vacuum moisture return, vacuum impregnation, vacuum drying and vacuum smelting.It has the characteristics of high vacuum and high pumping speed in high vacuum area.
