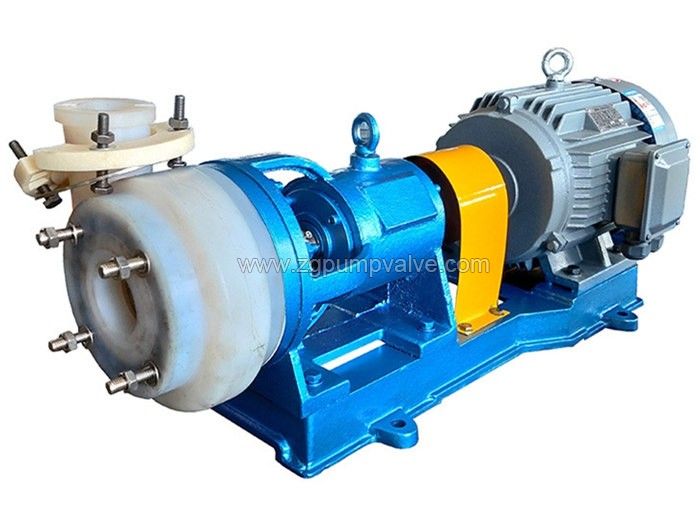

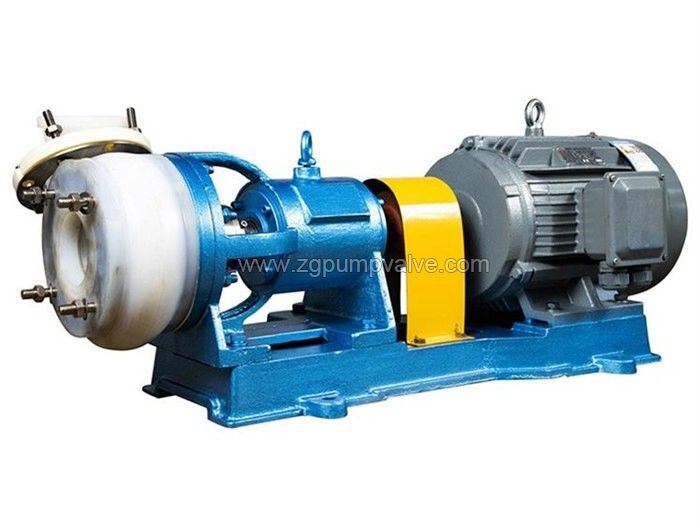

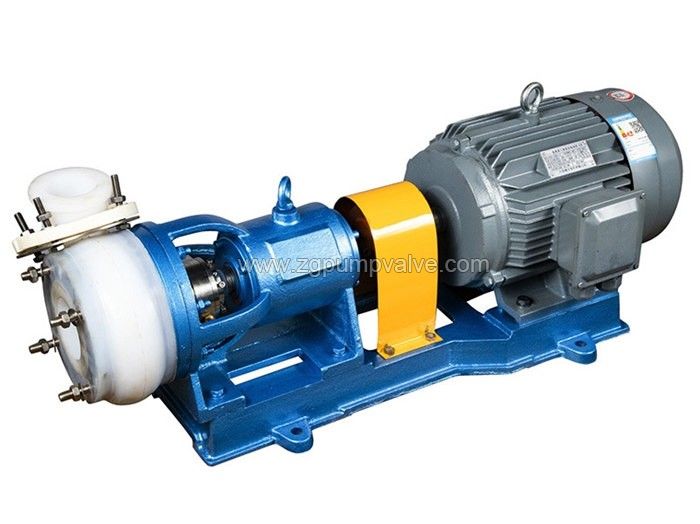

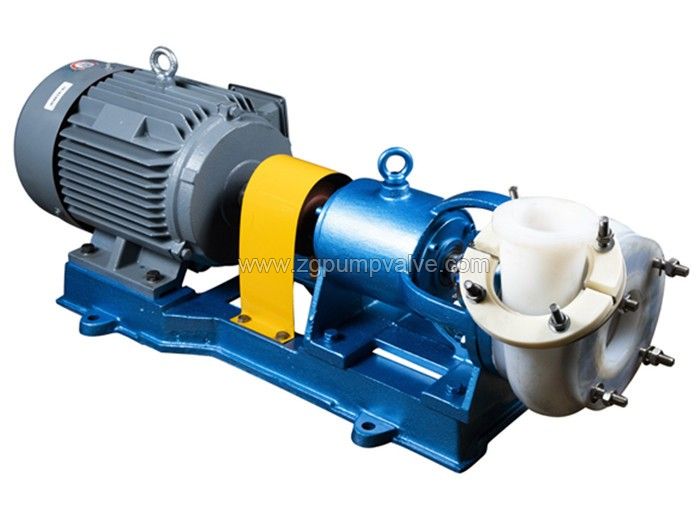

Fluorine Plastic Centrifugal Pump
PFA/PTFE fluoroplastic lined pump
The FSB fluorine Plastic/PTFE/PFA/Teflon centrifugal pump is designed according to international standards and China National Standard.
FSB and FSB (D) centrifugal pumps, all flow parts are made of fluoroplastic/PTFE, compact structure, simple operation and low price. The two types of pump casings, impellers, mechanical seals, etc. can be used interchangeably, especially for pesticide, electronics, and paper industries.
They are corrosion- and wear-resistant and can handle corrosive acids, aggressive liquids including hydrochloric acid(HCl), sulfuric acid(H2SO4), chromic acid, phosphoric acid, caustic soda (sodium hydroxide,NaOH), nitric acid...

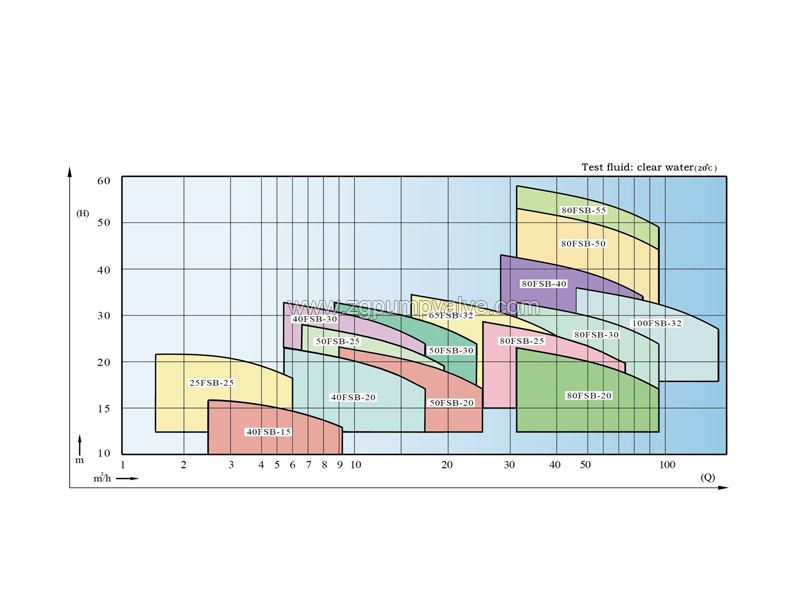

■Flow rate: Q=2～110（m³/h）
■Total head: H=10～56 (m)
■Inlet Diameter: 50-200mm
■Outlet Diameter: 32-150mm
■Max. Working Pressure: 1.6MPa
■FSB and FSB (D) centrifugal pumps, all flow parts are made of fluoroplastic/PTFE, all plastic pump head, cantilever structure, can not withstand the gravity of the pipeline. But compared to the IHF series, it is lighter and easier to maintain.

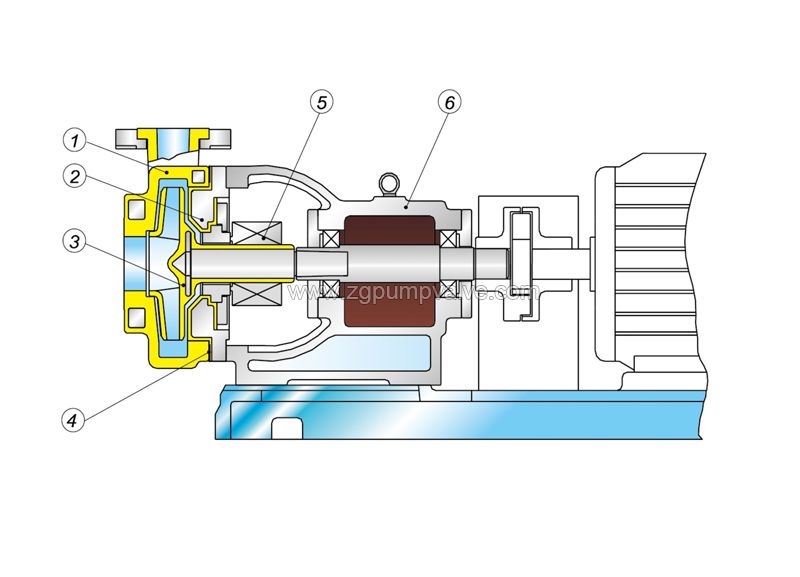

1. Pump casing
2. End gland
4. Regulating ring
5. Mechanical seal
■Pump housing is made of pure PTFE sintered molding
■Impeller is made of pure PTFE sintered molding
■Mechanical seal static ring is made of non-metallic silicon carbide
■Dynamic ring: Use PTFE filled carbon fiber material, or configure ceramics, silicon carbide, pressureless sintered silicon carbide, etc. according to the conveying medium.
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Mechanical seal||Zigong brand||Burgmann, Sihuan riji, Chengdu Yitong|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
|Couplings||Pin type||Flexible diaphragm coupling|
■Transportation of strong corrosive media in chlor-alkali, chlorobenzene, formed foil, pickling, pesticide, medicine, and other industries.
■Chlor-alkali industry: lye, electrolyte, refined, salt water of ion film caustic soda, chlorine solution, sodium hypochlorite, hydrochloric acid, sulfuric acid;
■Non-ferrous metal smelting:conveyance of various sorts of acidic solutions, electrolytes, sewage in wet-process smelting;
■Iron and steel industry:electroplating, pickling, etc;
■Acid production:hydrochloric acid nitric acid, sulfuric acid, phosphoric acid, acetic acid,etc;
■Energy industry:methanol, dimethyl ether, etc;
■Fermentation industry:intermediates, lactic acid, citric acid, food additives, beer, various ferment serum, etc;
■Environmental protection:various sorts of medicaments, acid-and alkali-containing wastwater, etc.
