Sewage water lifting pumping station

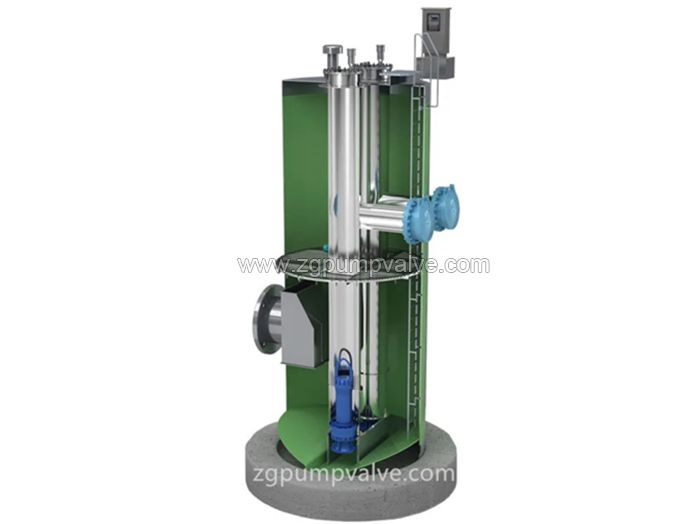

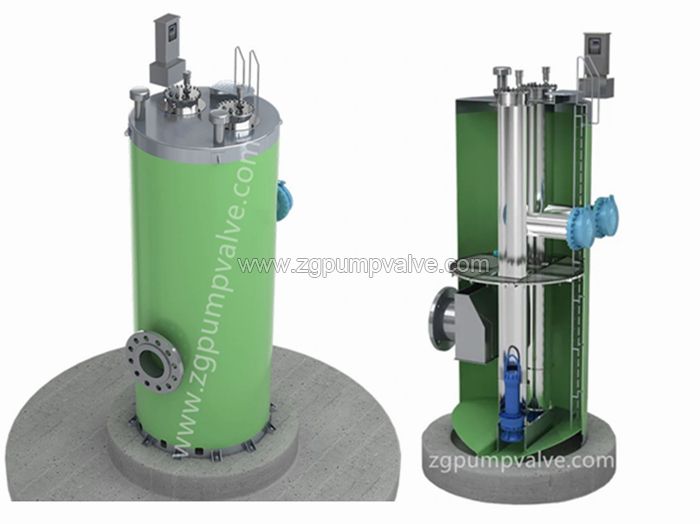

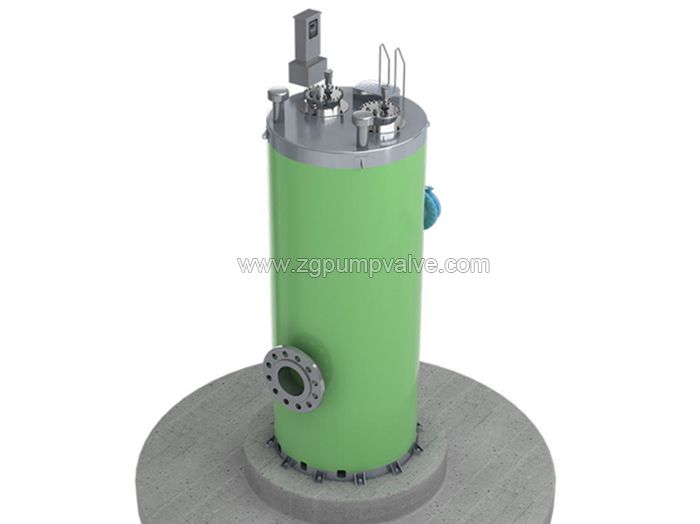

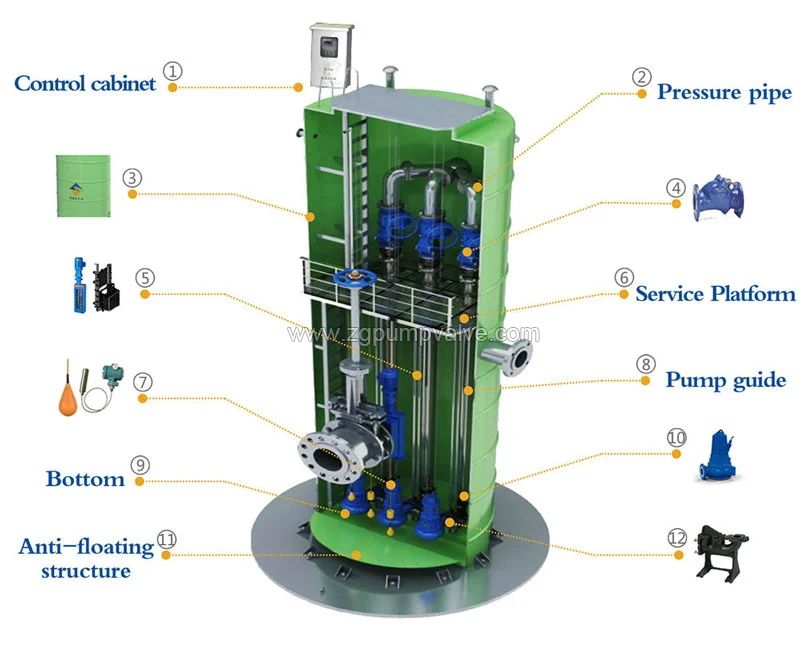

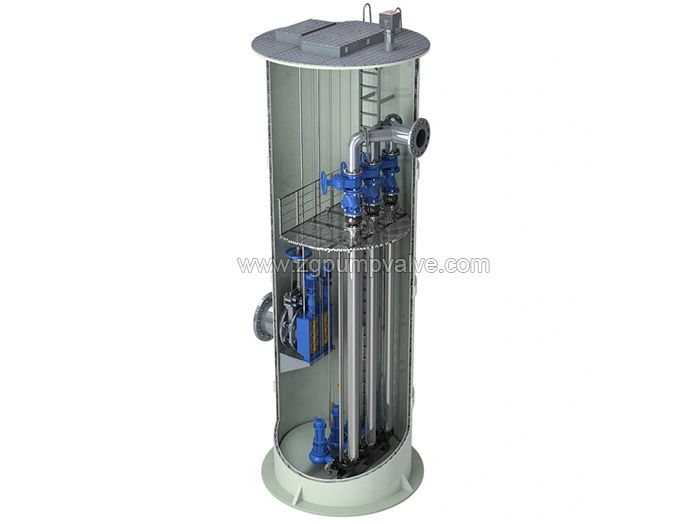

LPS large prefabricated and integrated pumping station, paying attention to every detail of the product. The main structure of the device is made of Glass Reinforced Plastic/fiberglass (GRP,FRP), which is strong, corrosion-resistant and durable. There is a high-quality submersible cutting pump (or large-channel impeller), a submersible crusher, so that the submersible pump can cut the scum in the pumping station, and the long-fiber object is chopped and discharged smoothly under the harsh conditions, without manually cleaning the barrel. Scum and suspended solids, excellent impeller design allows the pump to run at full lift and is highly efficient and without overload, making it a truly non-blocking pump.
1. The highest lift: 40 meters
2. The farthest horizontal distance: 300 meters
3. The maximum flow: 10--4000 cubic meters / hour
4. Power: 1.5KW--160KW
5. The pump is a CPE three-phase sewage submersible pump, IP68 is a submersible motor
6. Pumping station volume: 6000-80000 liters; pumping station diameter: 1--3 meters, height: 2--12 meters

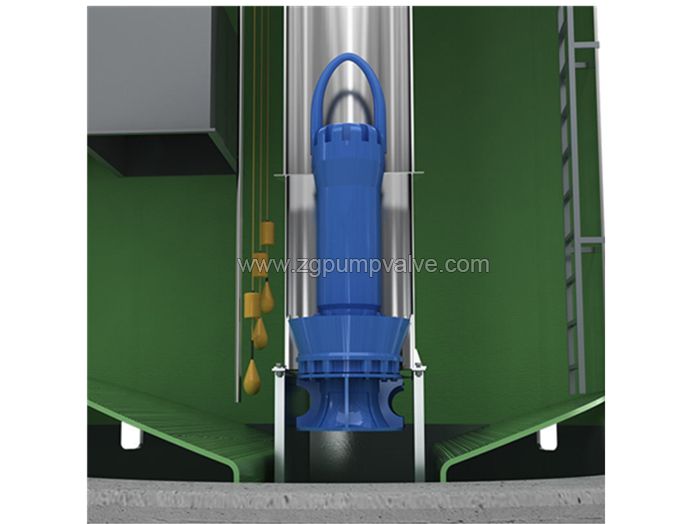

7. Sewage pump is auto-coupled in the container, which is more convenient for replacement and maintenance.
8. Double pump (three pumps, four pumps) installation, can be operated alternately, and can be used at the same time when the water intake is large.
1. Large effective volume; highly integrated;
2. The cylinder body adopts advanced anti-corrosion material, which strengthens the mechanical winding forming of FRP or FRP lined with special steel;
3. The pump pit adopts CFD fluid design, with large flow, no blockage, and self-cleaning function;
4. Reliable quality, no leakage, no pollution to the environment; light weight and low cost;
5. Equipped with high-quality, high-performance submersible sewage pump, the wide application of its sensors can monitor the operation of the pump at any time, greatly reducing maintenance costs;

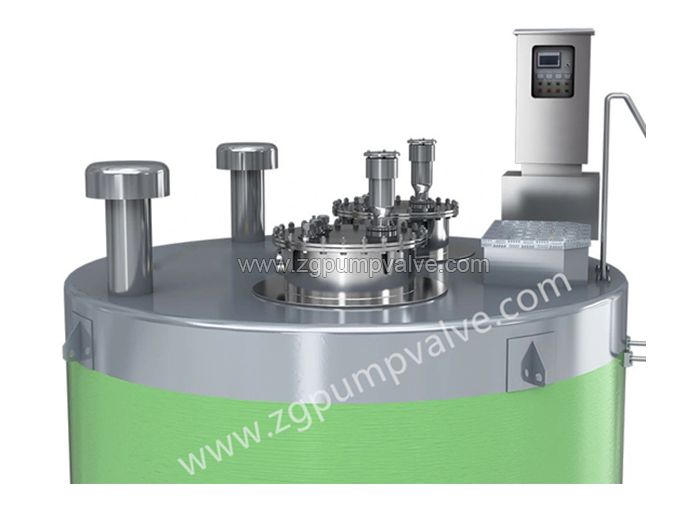

6. Highly automated integration, can realize remote monitoring and management, can also realize mobile phone monitoring, at the same time can achieve unlimited data transmission and automatic generation of operating reports and other functions;
7. Safety in use: scientific design and configuration greatly reduce the production of highly toxic and odorous gases and protect the environment;

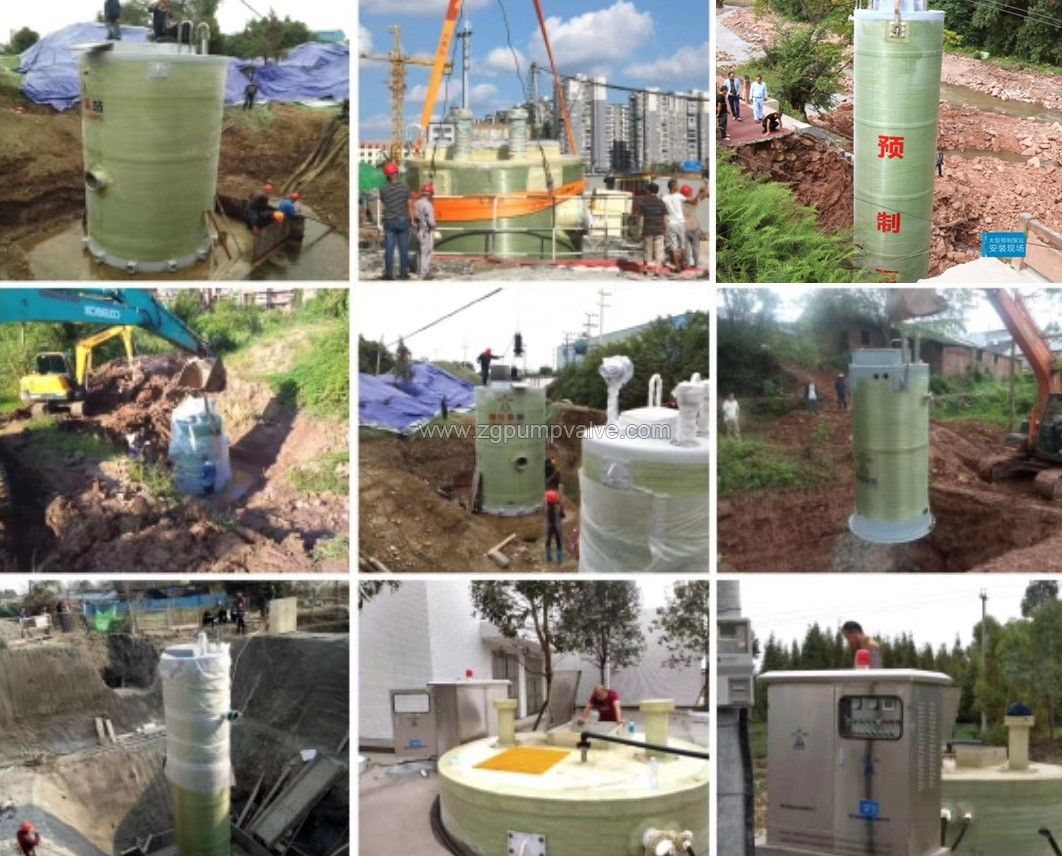

8. Completely buried installation, without affecting the surrounding environment and landscape after installation;
9. Short installation cycle, save most of the cost, save time and effort;

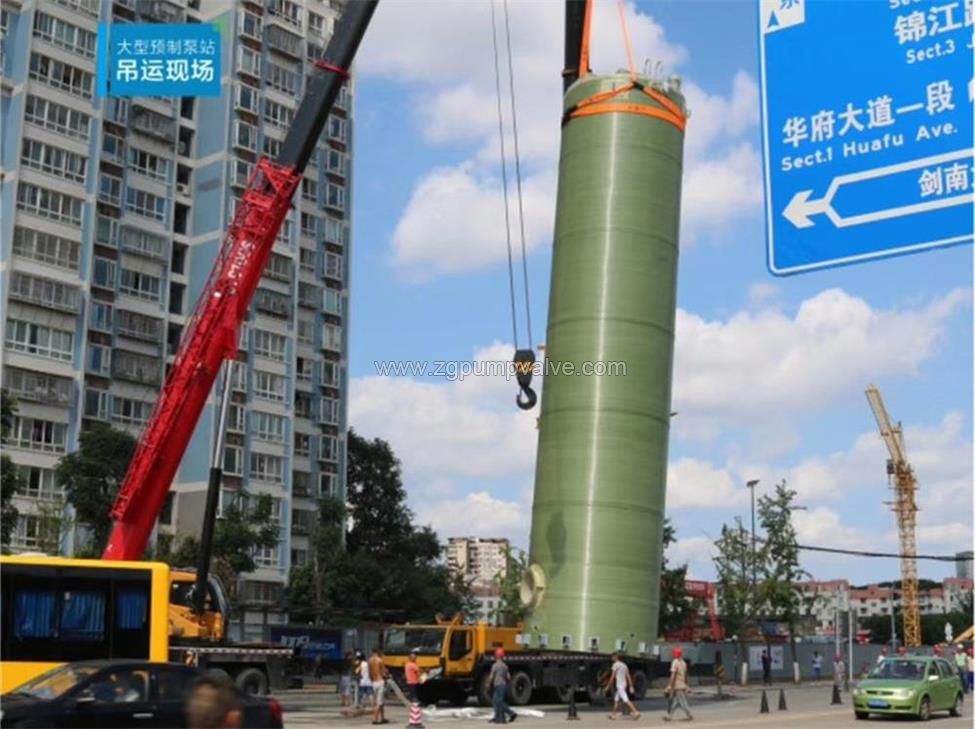

10. One-time investment, low long-term operating costs, and obvious energy-saving benefits. In the case of demolition or land occupation, it can be hoisted twice for secondary landfill;
11. Completely customized, each time according to different projects, pump stations with different diameters and different heights can be designed to meet the needs of various places.
Barrel diameter: 1000-4200mm
Barrel height: 2000-18000mm
Pump power: 1.5kw-160kw
Pumping capacity: 20-4000m3 / h (single wellbore)
Note: The performance parameters are determined according to actual working conditions, and various personalized prefabricated pump stations can be designed and manufactured according to user needs.
1. Remote control system
2. Crushing grid
3. Diesel generotor
4. Plasma deodorizing equipment
1. Urban shackles
2. Bridge and culverts
3. Long distance trasportation
4. Villa sewage
5. Residential sewage
6. Agricaltural drainage
7. Irrigation and water intake
8. River sewage
9. Scenic sewage collection
