Ball valve

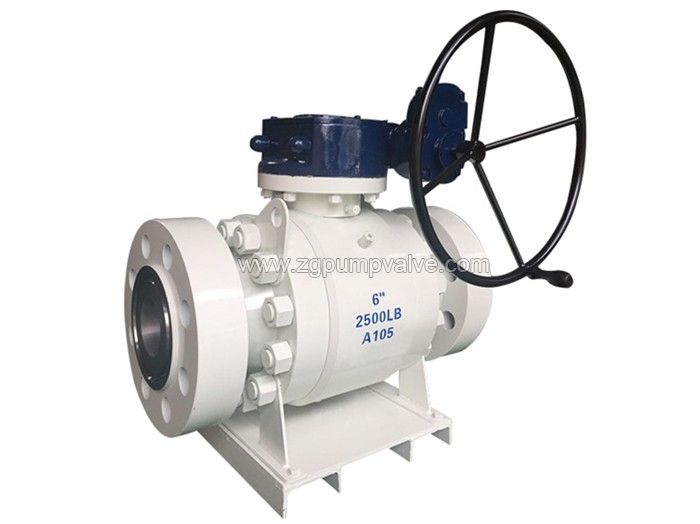

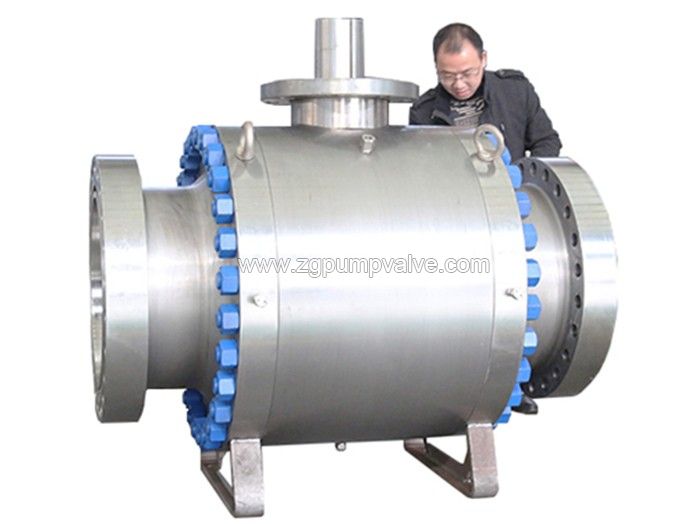

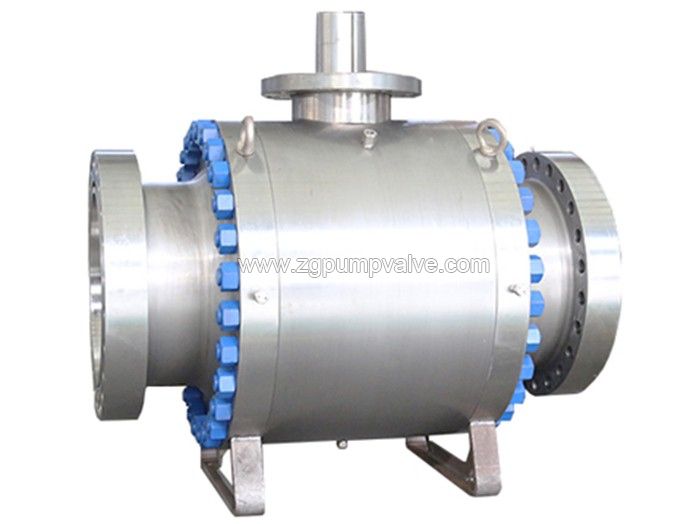

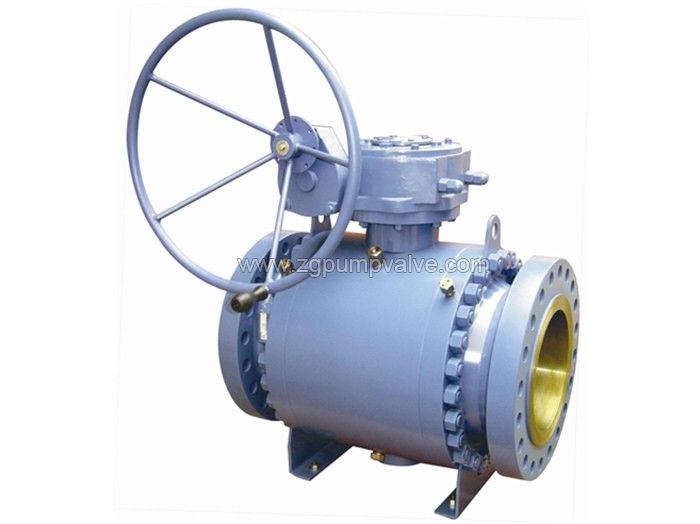

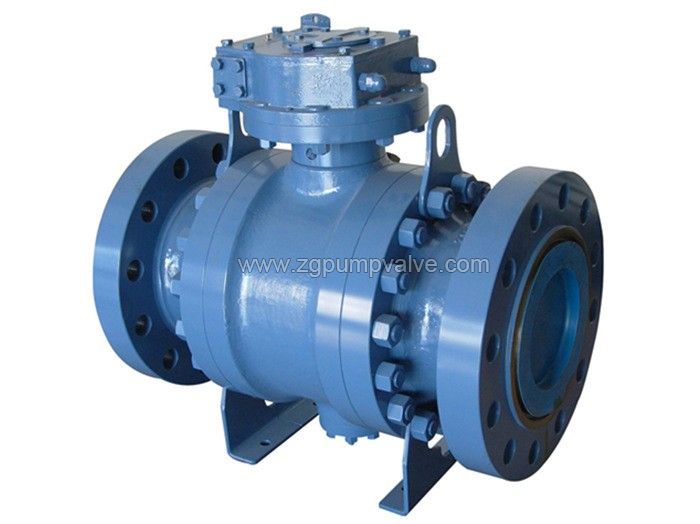

Metal to metal ball valve

Product name: Metal to metal ball valve

DN： 1/2”(15)~ 40”(1000)

CLASS(PN)： 150LB(PN16)~2500LB(PN420)

Available materials: cast iron, stainless steel SS304, SS316, SS316L, 904L, duplex stainless steel CD4MCu, 2205, 2507, Alloy 20, Hastelloy, Titanium, Monel, Nickel...

Inquire Now Next Product

Parameters
Features
Structure
MOC
Configuration
Application
Performance

None

Products & Service

Pump Products
Valve Products
Service

Company video

News

+86 28 8218 1182
+86 137 3800 6567
+86 28 8218 1182
sales@zgpumpvalve.com
zigongpump

Body structure:	Forged steel body / cast steel body, bolted body / fully welded body
Valve seat:	Self-Relief / Double Piston Effect Seat / Upstream Self-Relief Valve Seat Downstream Double-Piston Effect Seat (Optional)
Ball:	The floating ball/trunnion mounted,solid
Flow pass:	Full bore / reduced diameter (optional)
Valve stem:	Anti-blowout, can be lengthened (optional)
Operation mode:	Manual / electric / pneumatic / pneumatic-hydraulic linkage / electro-hydraulic linkage / hydraulic (optional)
Seal:	Metal to metal
Grease injection valve:	Optional
Vent valve:	Optional
Sewage valve:	Optional
Locking device:	Optional
Leak rating:	Soft seal: ISO 5208 Class A, metal seal: ISO 5208 Class C or higher, ANSI VI

Material of main parts
Valve body	Carbon steel / stainless steel / alloy steel forgings
Ball	Carbon steel / stainless steel / alloy steel forging nickel / chrome / spray welding hard alloy
Support ring	Carbon steel / stainless steel / alloy steel forging nickel / chrome / spray welding hard alloy
Valve seat	PTFE, RPTFE, VITON, NYLON, DEVLON, MOLON, PEEK/Seal face spray welding, tungsten carbide
Valve stem	Stainless steel / alloy steel / INCONEL, etc.
O ring	VITON, PTFE, GRAPHITE, etc.
Bolts and nuts	A193/A194, A320/GB/HG, etc.

Pressure temperature class:	ASME B16.34
Design:	ASME B16.34, API 6D, GB, GOST, DIN, BS,etc.
Inspection & test:	API 6D / API 598 / GB/T 13927 and other relevantNational standards.
Structure length:	API 6D, ANSI B16.10, GB 12221, GOST, DIN, BS / manufacturer standard / user requirements.
Connection end:	BW (ASME B16.25, ASME B31.8 / GB / T12224 and other national standards), RF (ASME B16.5, ASME B16.47, GB / JB / HG / GOST, DIN, etc.), RTJ (ASME B16. 5, ASME B16.47, GB / JB / HG / GOST, DIN, etc.), BW + PUP (the length of the transition tube is customized)
Fire protection requirements:	API 607/API 6FA/BS 6755
Anti-static electricity:	API 608/BS 5351
Valve anti-sulfur:	NACE MR. 0175
