High Temperature Hot Water Pump

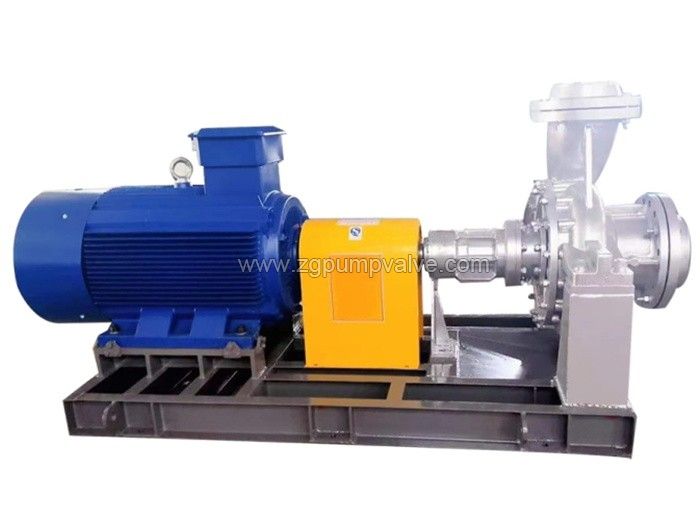

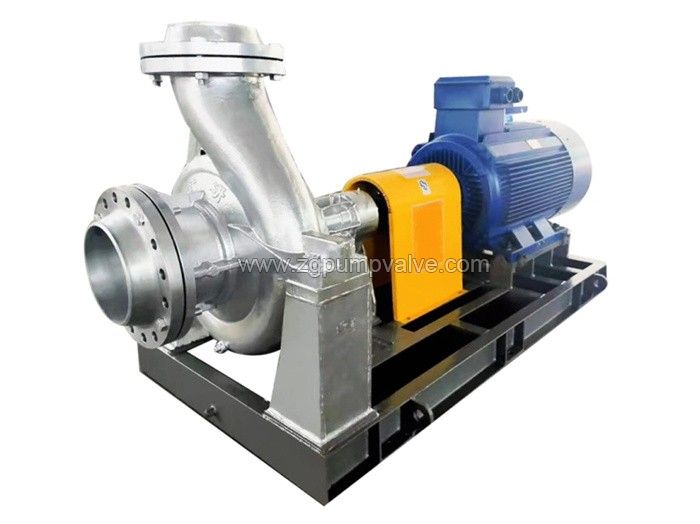

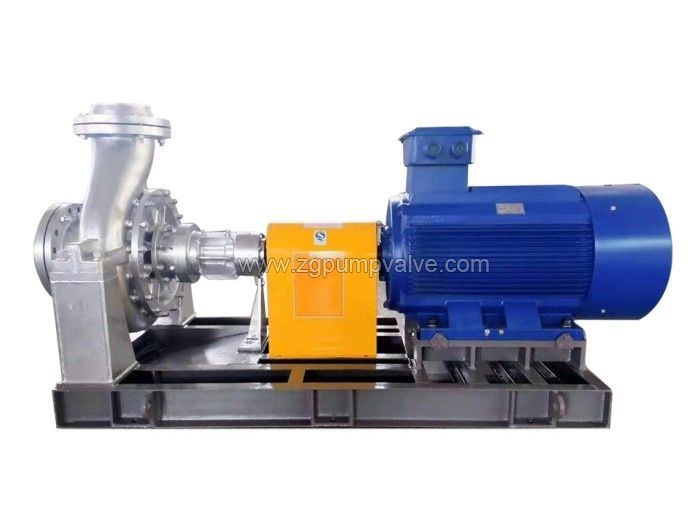

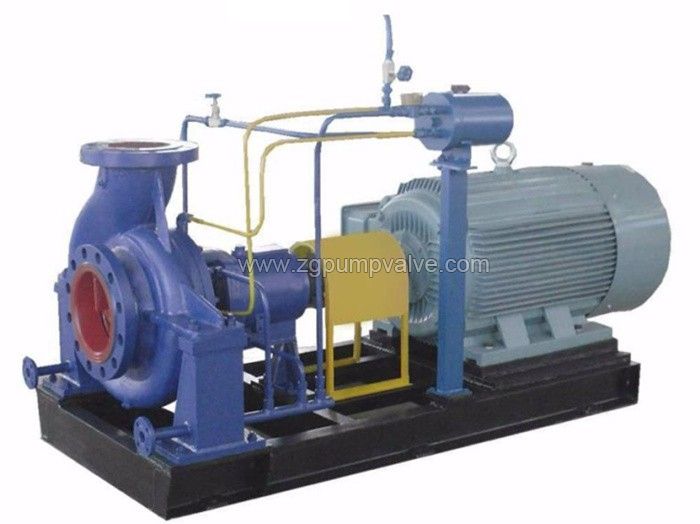

A high temperature hot water circulating centrifugal pump is designed to handle with high temperature medium. It is a centrifugal pump with single stage end suction cantilever, is a horizontal center line support. The deformation and displacement of the pump caused by thermal expansion and cold contraction at high temperature are minimal. High temperature hot water circulation pumps are mainly used in coal chemical industry vaporization unit as the preheating pumps, can also be used in chemical fertilizer, petroleum, chemical and other high temperature section as the high temperature medium pump.
■ Flow rate：Q=100~1000 （m³/h）
■ Total head：H=90~180 (m)
■ Speed：n=1450rpm
■ Temperature：T=-20~450℃
■ Max. pressure：6.5Mpa
