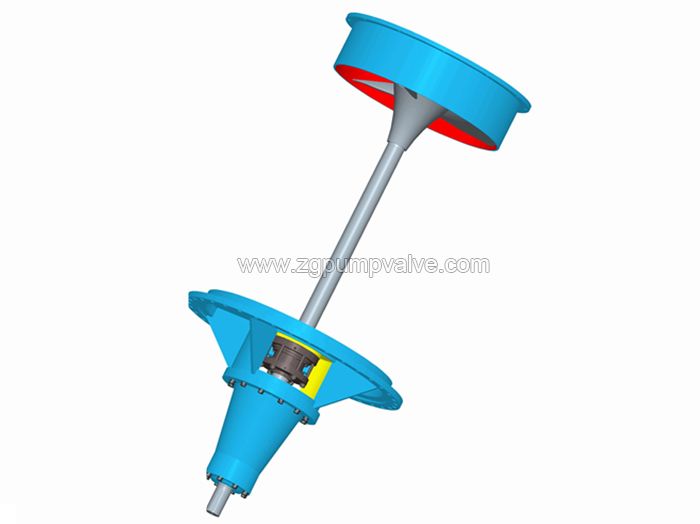

Bottom entry chemical agitator/propeller
DJ series is an updated bottom entry propeller/agitator especially developed for agitating the reaction tank,it is suitable for big flow rate with low total head.It is a propeller to fulfill fluid agitation in the chemical process of polymerization,condensation,sulfuration,hydrocarbonylation,and is widely used in industries of the salt making,chemical,petrochemical,food,medicine,agrochemical...There are various materials available for our chemical process pump, including stainless steel SS304, SS316, SS316L, duplex stainless steel, Alloy 20, Hastelloy, Titanium, Monel, Nickel...There are various materials available for our bottom entry chemical agitator/propeller, including stainless steel SS304, SS316, SS316L, duplex stainless steel, Alloy 20, Hastelloy, Titanium, Monel, Nickel...
■Flow rate：Q=300～50000 m³/h
■Total head：H=2～0.5 m
■Hydraulic performance is optimized by CFD;Especially built a large experimental facility to guarantee
the products performance.
■High efficiency propeller;Safe and endurable driving structure;Stable and reliable sealing system.
■Low speed and low linear speed design brings little damage to the crystals.
■Heavy-duty shaft design ensures the stable operation of pump.
■Independent double mounting cantilever structure allows the independent function of mechanical seal
and front bearings,which brings the reliability of mechanical seal and driving system.
■Various mountings to fit facilities of different sizes; Solved the problems caused by traditional mounting,
unreliable driving and frequent maintenance.
■Slight vibration,low noise,smooth operation and high efficiency.

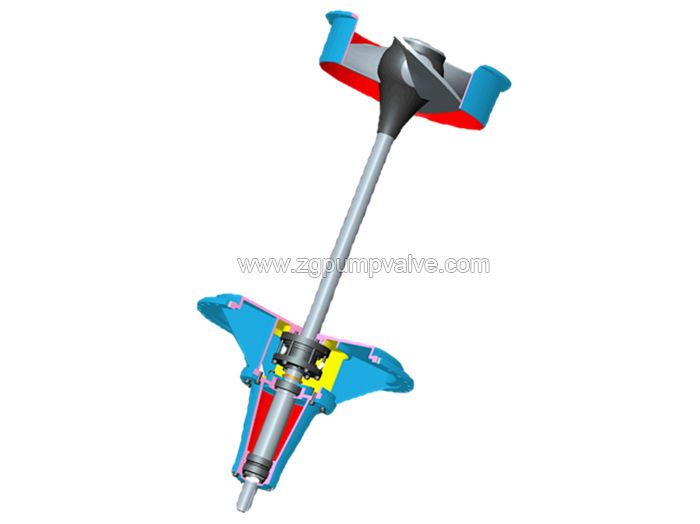

■Independent double mounting cantilever structure
■Independent mechanical seal which is totally unattached to the radial bearings.
■Special designed cartridge mechanical seal(Plan54+Plan32).
■Updated complete structure with high efficiency propeller.
■Various mountings to fit different requirements.
■Motor,gear box and propeller are all settled under the reaction still(fully hung type)
■Propeller is installed under the reaction still,while the motor and gear box is installed on the ground,connected
by an universal joint.(half hung type)
|Anti-corrosion alloy||Cast steel||Stainless steel|
|China standard||ASTM standard||China standard||AST standard||China standard||ASTM standard|
|8||Bearing Housing||CI, CS|
|Item||Factory standard||Optional configurations|
|Motor||Reputed China brands||ABB, Siemens, Nanyany, Jiamusi or designated brands|
|Bearing||Reputed China brand||SKF, NSF, FAG or designated brands|
|Mechanical seal||Zigong brand||Burgmann, Sihuan Riji, Chengdu Yitong|
|Flanges&counter flanges||China standard||European std, German std, American std, Japanese std|
|Couplings||Pin type||Flexible diaphragm coupling|
■Suitable for the agitation in the reaction still.
■It is a propeller to fulfill fluid agitation in the chemical process of polymerization,condensation,sulfuration,hydrocarbonylation.
