Titanium Axial Flow Pump

Our axial flow pumps made from Titanium have wide performance range which can cover the requirements from most customers. However, we may customize the pumps according to the specific requirements if the standard products can not meet the needs.

■ Capacity: Q=250～22,000（m³/h）

■ Head: H=8～1.5 (m)

■ Speed range: n=180～1450 rpm

■ Fluid density: ≤1.5

■ Fluid temperature: 0～180℃

■ Fluid viscosity: ≤600(mm2/s)

■ Pump diameter: Ф200mm~1800mm

The Titanium axial flow pumps are the ideal pumping device for applicaions of high volume flow and low head, due to the feature of titanium materials, those pumps have excellent performance in resistance to fluids contain high chloride ions. Below are the features of our axial flow pumps made from Titanium.

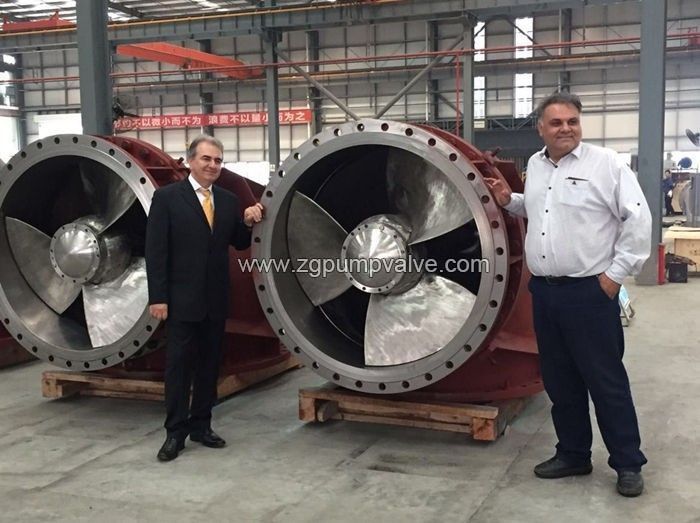

■ Impeller blades angle adjustable

■ Slow speed design

■ Low NPSHr value.

■ Pipe hung mounting, no baseplate or expansion joints are required

■ Impeller section casing, enables the quick dismantle of impeller.

■ Smooth operation with minimal vibration, high efficiency and energy-saving.

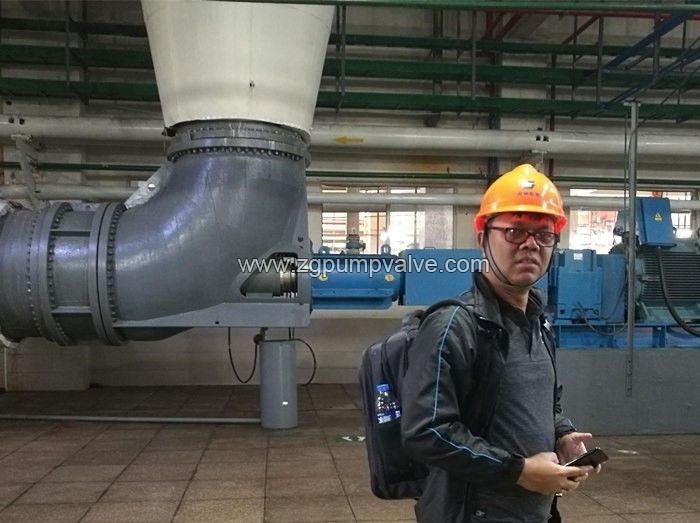

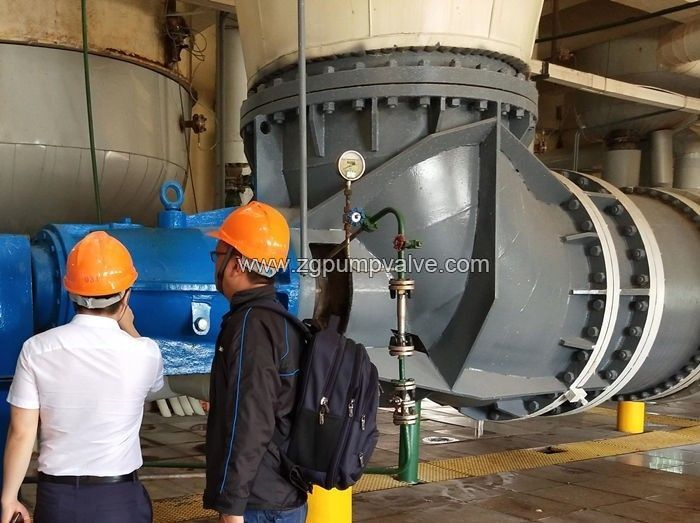

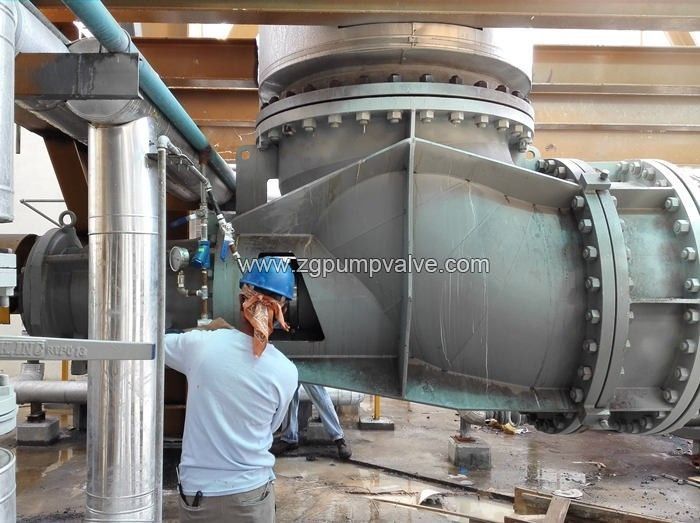

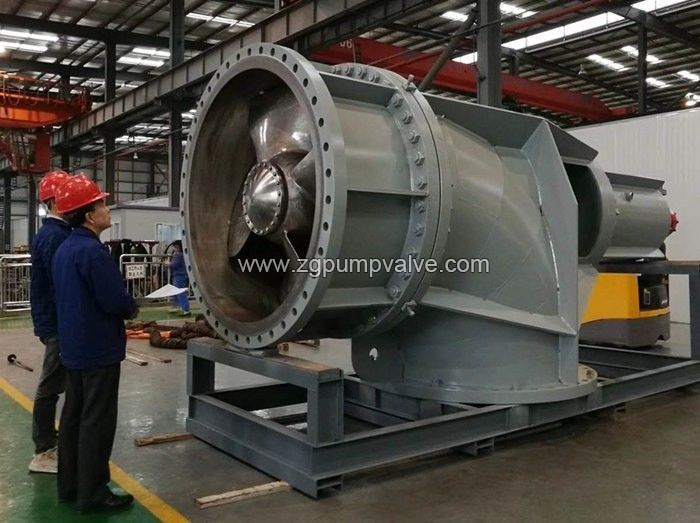

The main parts of an axial flow pump include the pump elbow, propeller, coulings or pulley, motor and base plate. And the installation methods of those axial pumps can be customized according to the site condition in end user's plants.

Structural drawing of axial flow pumps

	K-pipe hung arrangement  No baseplate for both pump and motor,no  expansion  joint on pipe. The Axial Flow Pump is driven by motor through V-belts.This arrangement is only applicable for the pump   diameter from 300-500mm and motor  capacity below 55Kw.
	E-half pipe hung arrangement No baseplate for axial flow pump,pump is hung on the pipe,no expansion joint on pipe.For big axial pumps above 700mm diameter,there must be a fluctuating frame at the horizontal pipe connecting the pump.Only V-belts and universal joint are recommended as the transmission method for this arrangement.
	F-horizontal arrangement Baseplate is required for both axial pump and electric motor. An expansion joint on the pipe is also required for high temperature applications.Transmission methods can be V-belts and direct coupled.
For easy maintenance purpose,the above mentioned arrangements require a casing between horizontal pipe and the aixal flow pump.

The Titanium axial flow pumps are typically constructed from Titanium or Titanium alloys for corrosion resistance purpose, due to the excellent corrosion resistant performance, those pumps are widely for fluids like high temperature brines or fluids contain big amount of chloride ions.

Material of Construction of our axial flow pumps:

The chemical axial flow pumps made from Titanium are expensive pumping devices that mainly designed and built for highly corrosive fluids, however, different configurations are available according to our clients' requirements.

Item		Factory standard	Optional configurations
Motor		Reputed China brands	ABB, Siemens, Nanyany, Jiamusi or designated brands
Bearing		Reputed China brand	SKF, NSF, FAG or designated brands
Gear box		Reputed China brand	SEW, Shandong Chenghua, Zhengzhou machinery instituteSiemens, Flender
Flanges&counter flanges		China standard	European std, German std, American std, Japanese std
Couplings		Pin type	Flexible diaphragm coupling

■ Seawater Applications:

The Titanium Axial Flow Pumps are widely used in seawater desalination systems, offshore platforms, and shipbuilding plants.

■ Chemical Processing:

Due to the excellent corrosion resistant capability of Titanium alloy, those axial pumps are good choices for handling highly corrosive chemicals including acids, alkali and other chemical mediums contains big amount of chloride ions.

■ Coastal Power Plants:

Due to the corrosive characteristics of seawater, the coastal power plants requires the axial flow pumps made from Titanium to circulate the seawater for their cooling systems.

■ Marine & Aquaculture:

Fish and shrimp farms, vessels and marine engineerings requires big low pumps with excellent corrosion resistant performance, Titanium axial flow pumps cover the requirements quite well.

■ Pollution Control:

Pumping corrosive wastewater, flue gas desulfurization scrubber slurries, and other harsh effluents require the corrosion resistant axial flow pumps made from Titanium alloys.
